Toyota Land Cruiser
Luxury meets fortress-level B7 ballistic protection. Premium VIP transport platform engineered by ERAF for executive and high-threat security operations.
Toyota Land Cruiser
Luxury meets fortress-level B7 ballistic protection. Premium VIP transport platform engineered by ERAF for executive and high-threat security operations.
Toyota Land Cruiser
Overview
File Attachment.jpg)
.jpg)
.jpg)
Specifications
Description

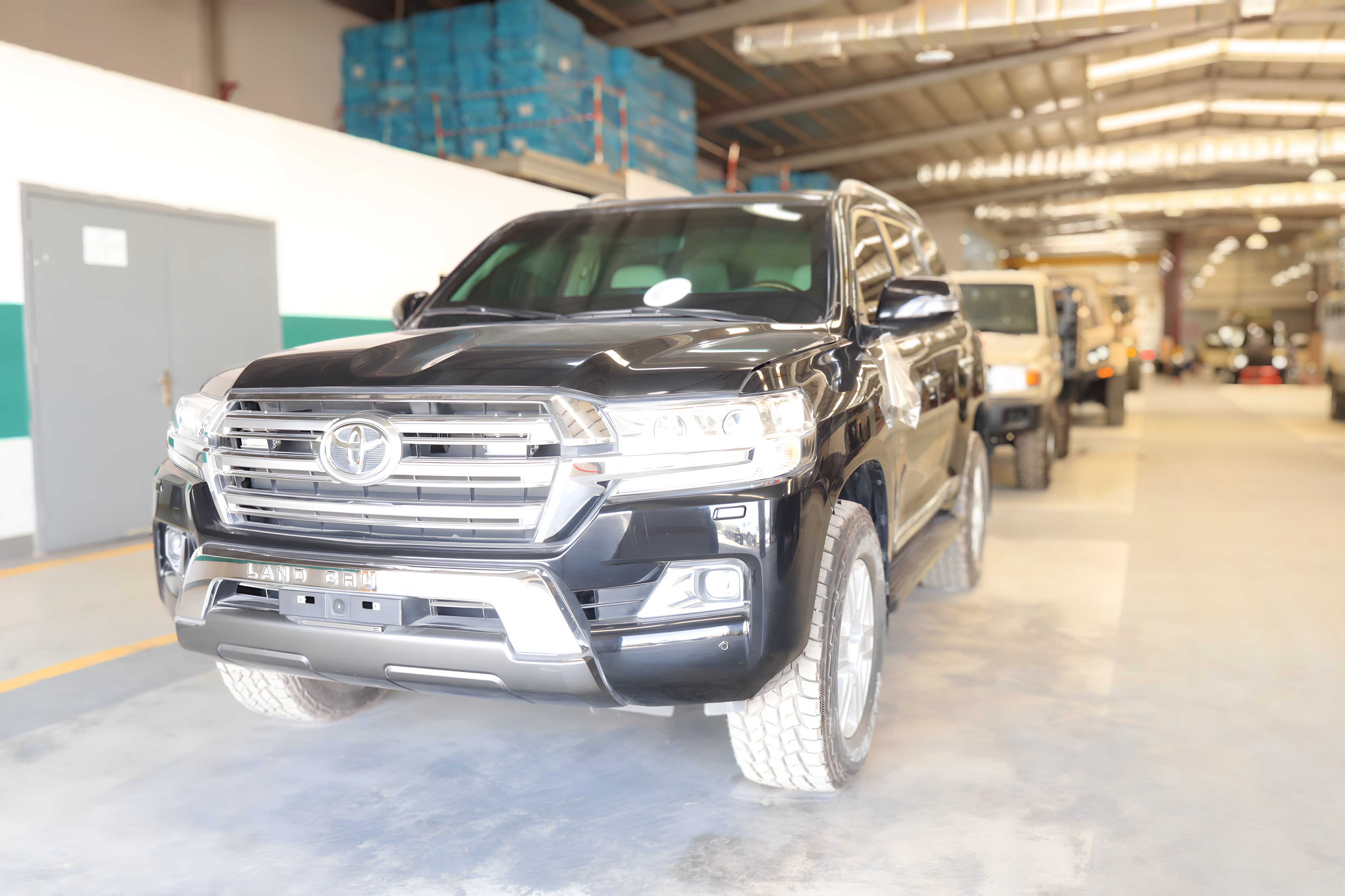

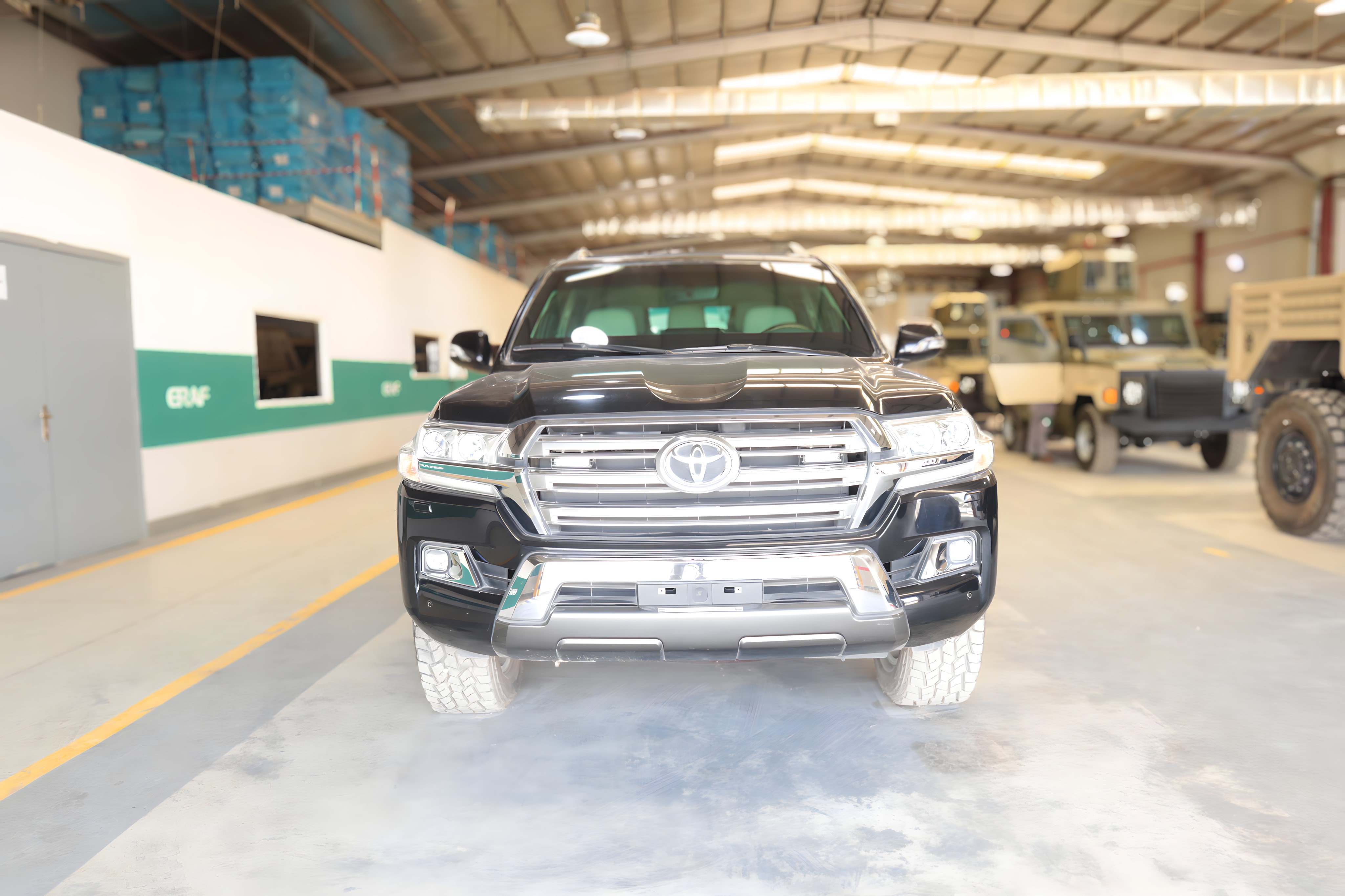

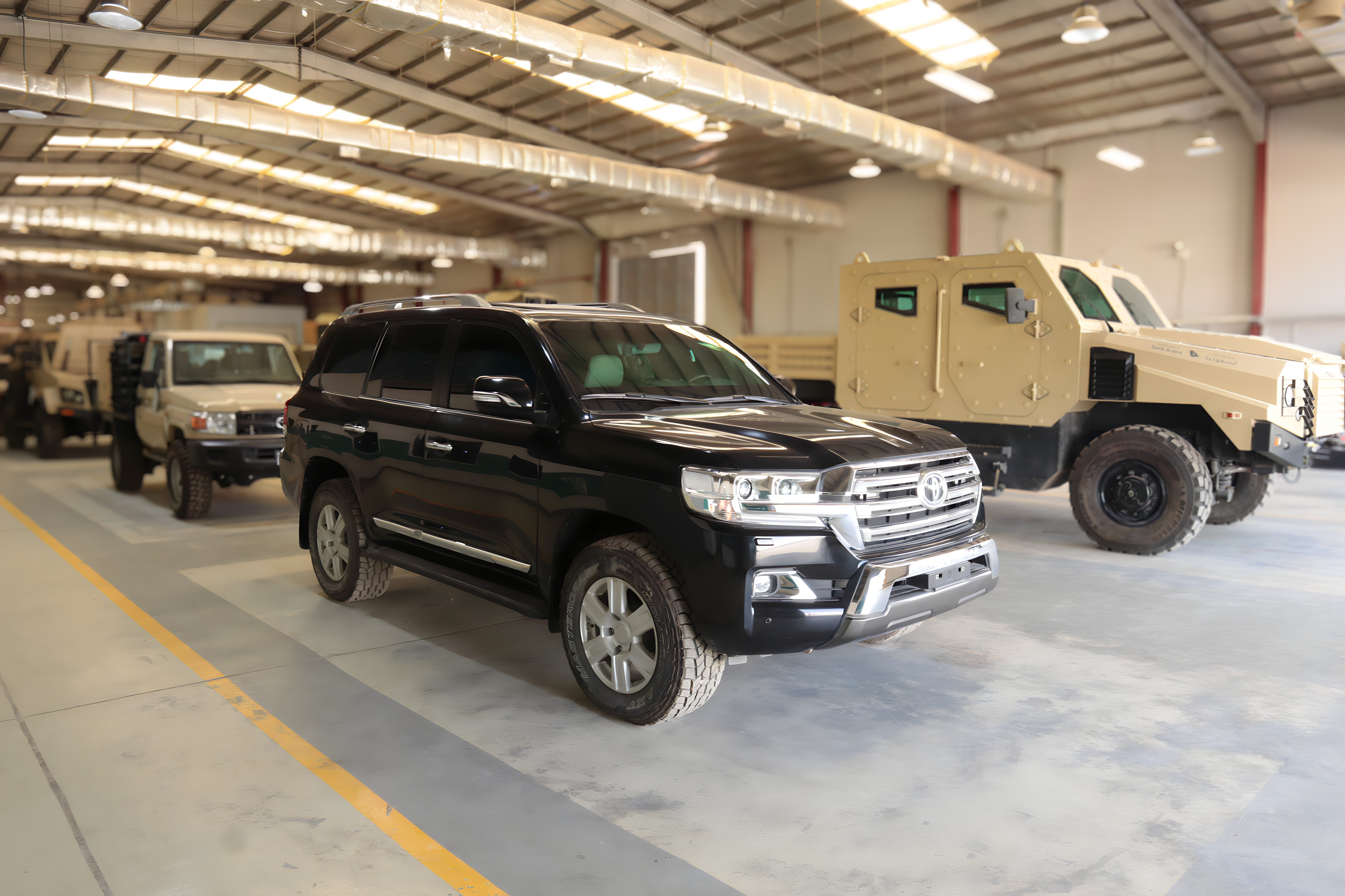

The Armored Toyota Land Cruiser 200 delivers fortress-level security on the world's most trusted premium SUV platform. With B7 ballistic protection and advanced engineering by ERAF, this vehicle combines luxury, reliability, and uncompromising defense for executive protection and high-threat VIP transport.
Engine & Powertrain
• Engine Model : 5.7L V8 DOHC 32-Valve
• Cylinders : 8
• Displacement : 5.7 L
• Max Power : 362 Hp @ 5600 rpm
• Max Torque : 544 Nm @ 3600 rpm
• Fuel Type : Gasoline
• Transmission : 6-Speed Automatic
• Transfer Case : OEM Configuration
• Clutch System : Upgraded for Heavy Duty
Dimensions & Weight
• Overall Length: 4950 mm
• Max Width: 1980 mm
• Max Height: 1880 mm
• Wheelbase: 2840 mm
• Track Width (Front): 1640 mm
• Ground Clearance: 225 mm
• Vehicle Gross Weight: 4625 kg
• Approach Angle: 30°
• Departure Angle: 20°
Performance & Mobility
• Maximum Speed: 120 km/h
• Range: 1000 km
• Gradeability: 50%
• Side Slope: 40%
• Step Climb Capability: 250 mm
• Fording Depth: 450 mm
Chassis & Suspension
• Front Axle: Upgraded HD Components
• Rear Axle: Upgraded HD Components
• Front Suspension: HD Coil Shock (Upgraded Heavy Weight)
• Rear Suspension: HD Leaf Shock (Upgraded)
• Brakes (Service): Upgraded with Ceramic
• Parking Brake: Cable Operated (Upgraded)
• Steering: Power Assisted Telescopic
• Tires: 285/60 R18 HD Off-Road with Runflat
• Fuel Tank: 93 L with B6 Level Protection
• Bumper: OEM Front Bumper
Ballistic Protection
• Protection Standard: B7 EN 1063 / DM512
• Mine Protection: DM512 Level
• Transparent Armor: B6 Level 7.62×39 caliber
• Fuel Tank Protection: B6 Grade
Features & Systems
• Electrical System: Upgraded 12V DC Dual Dry Battery
• Manufacturer: ERAF Industrial Company Ltd.
• Heritage: Saudi Armored Engineering Excellence
Engine & Powertrain
• Engine Model : 5.7L V8 DOHC 32-Valve
• Cylinders : 8
• Displacement : 5.7 L
• Max Power : 362 Hp @ 5600 rpm
• Max Torque : 544 Nm @ 3600 rpm
• Fuel Type : Gasoline
• Transmission : 6-Speed Automatic
• Transfer Case : OEM Configuration
• Clutch System : Upgraded for Heavy Duty
Dimensions & Weight
• Overall Length: 4950 mm
• Max Width: 1980 mm
• Max Height: 1880 mm
• Wheelbase: 2840 mm
• Track Width (Front): 1640 mm
• Ground Clearance: 225 mm
• Vehicle Gross Weight: 4625 kg
• Approach Angle: 30°
• Departure Angle: 20°
Performance & Mobility
• Maximum Speed: 120 km/h
• Range: 1000 km
• Gradeability: 50%
• Side Slope: 40%
• Step Climb Capability: 250 mm
• Fording Depth: 450 mm
Chassis & Suspension
• Front Axle: Upgraded HD Components
• Rear Axle: Upgraded HD Components
• Front Suspension: HD Coil Shock (Upgraded Heavy Weight)
• Rear Suspension: HD Leaf Shock (Upgraded)
• Brakes (Service): Upgraded with Ceramic
• Parking Brake: Cable Operated (Upgraded)
• Steering: Power Assisted Telescopic
• Tires: 285/60 R18 HD Off-Road with Runflat
• Fuel Tank: 93 L with B6 Level Protection
• Bumper: OEM Front Bumper
Ballistic Protection
• Protection Standard: B7 EN 1063 / DM512
• Mine Protection: DM512 Level
• Transparent Armor: B6 Level 7.62×39 caliber
• Fuel Tank Protection: B6 Grade
Core Features
Powerful 5.7L V8 Engine
362 horsepower with 544 Nm torque provides exceptional acceleration and performance for premium executive transport with confidence
Premium B7 Ballistic Armor
Advanced Level B7 protection (EN 1063) across entire vehicle including armored transparent panels and B6 fuel tank protection
Blast & Mine Protection
2× DM51 hand grenade protection with reinforced structure and shock-absorbing systems for maximum occupant safety
Extended Range Capability
93-liter fuel tank with B6 protection provides 1000 km operational range for uninterrupted executive missions
All-Terrain Performance
Upgraded suspension and HD off-road tires with run-flat inserts enable operation across challenging terrain while maintaining luxury comfort
6-Speed Automatic Transmission
Advanced automatic gearbox provides smooth, responsive power delivery optimized for heavy-duty armored vehicle operation
