Tares_I_8TF1
Saudi-engineered adaptable 8-ton military chassis platform for custom up-armor conversions and specialized mission configurations with proven STANAG Level II protection.
Tares_I_8TF1
Saudi-engineered adaptable 8-ton military chassis platform for custom up-armor conversions and specialized mission configurations with proven STANAG Level II protection.
Tares_I_8TF1
Overview
File Attachment
.jpg)
Specifications
Description

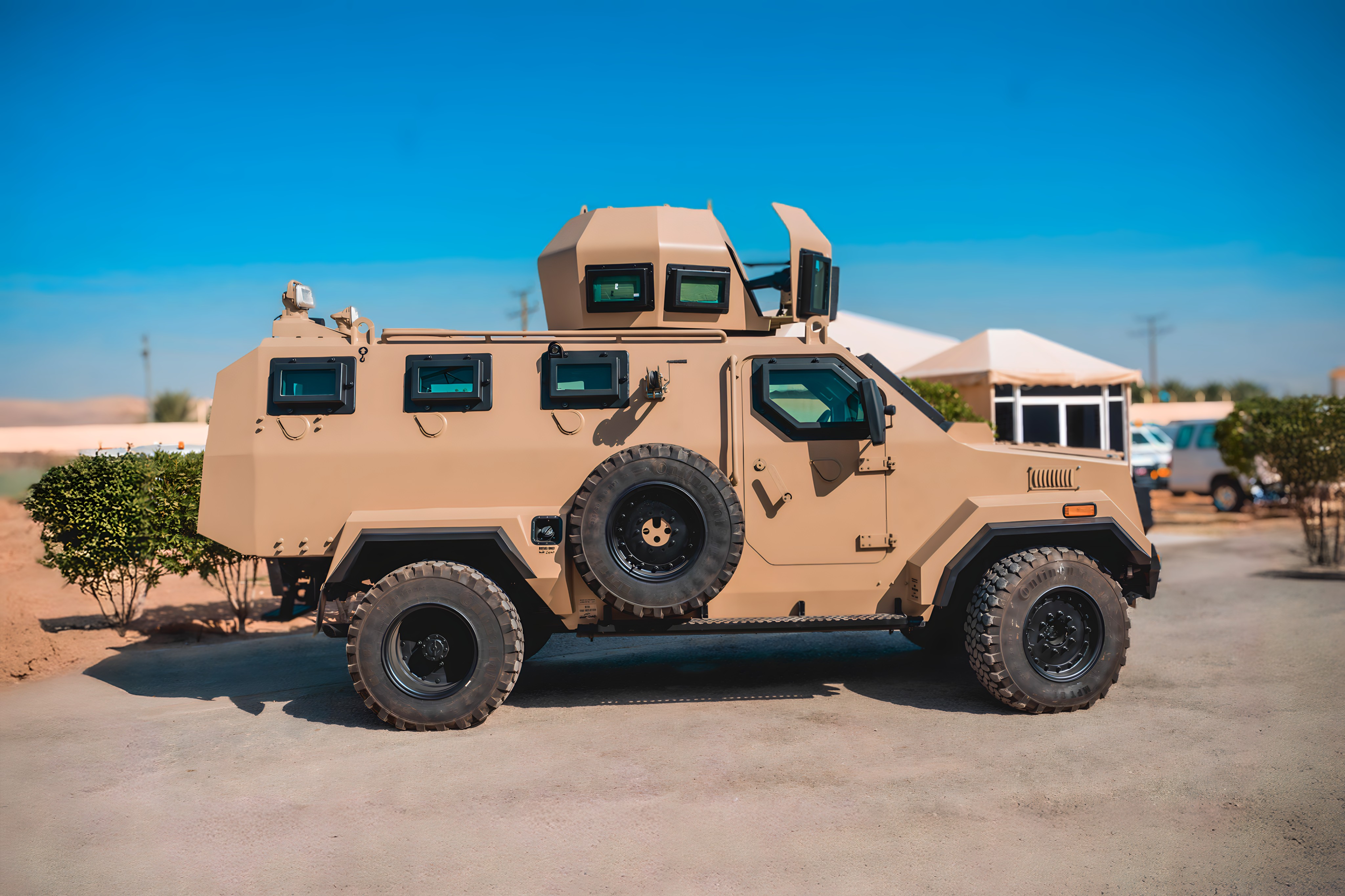

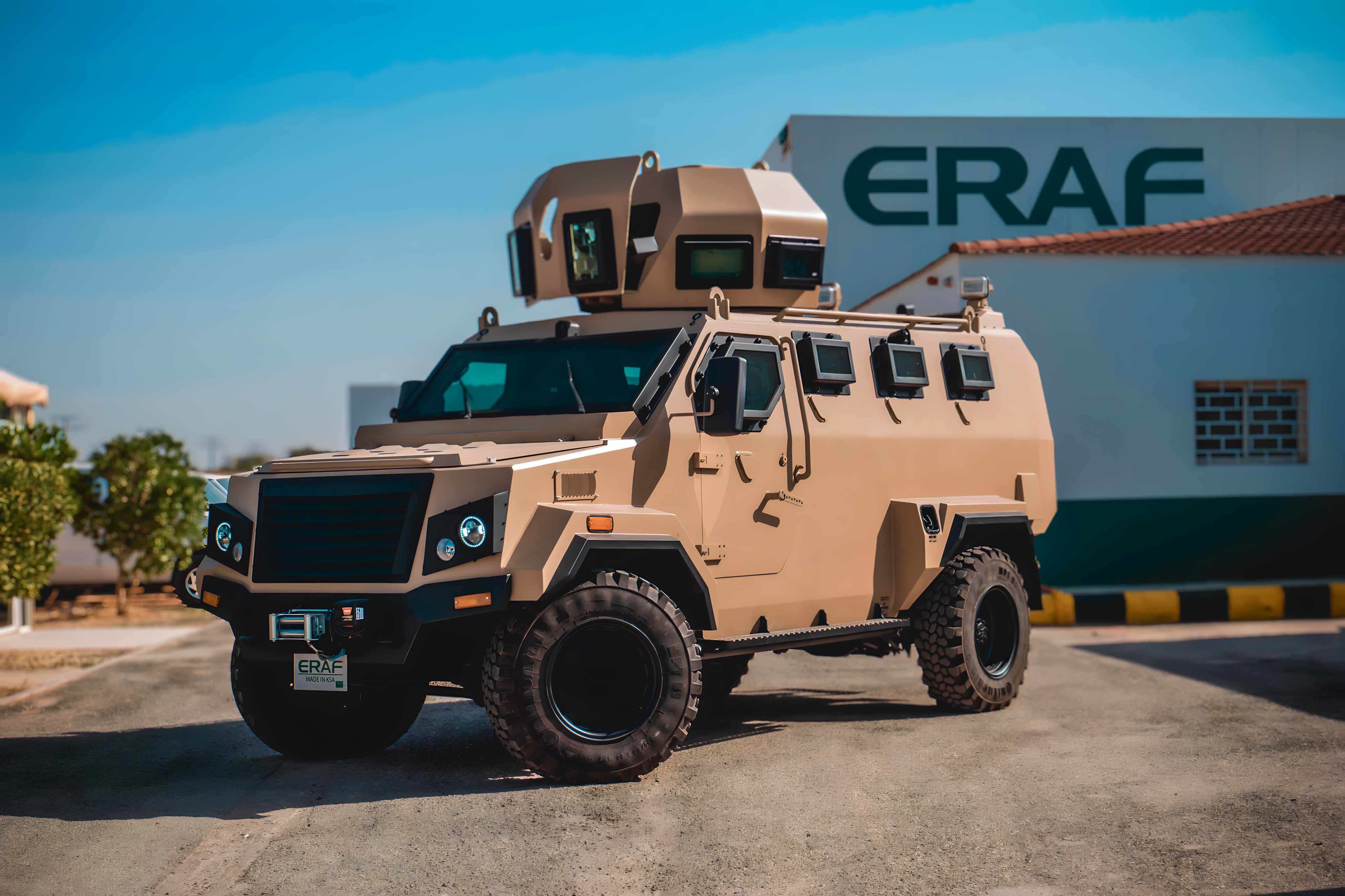

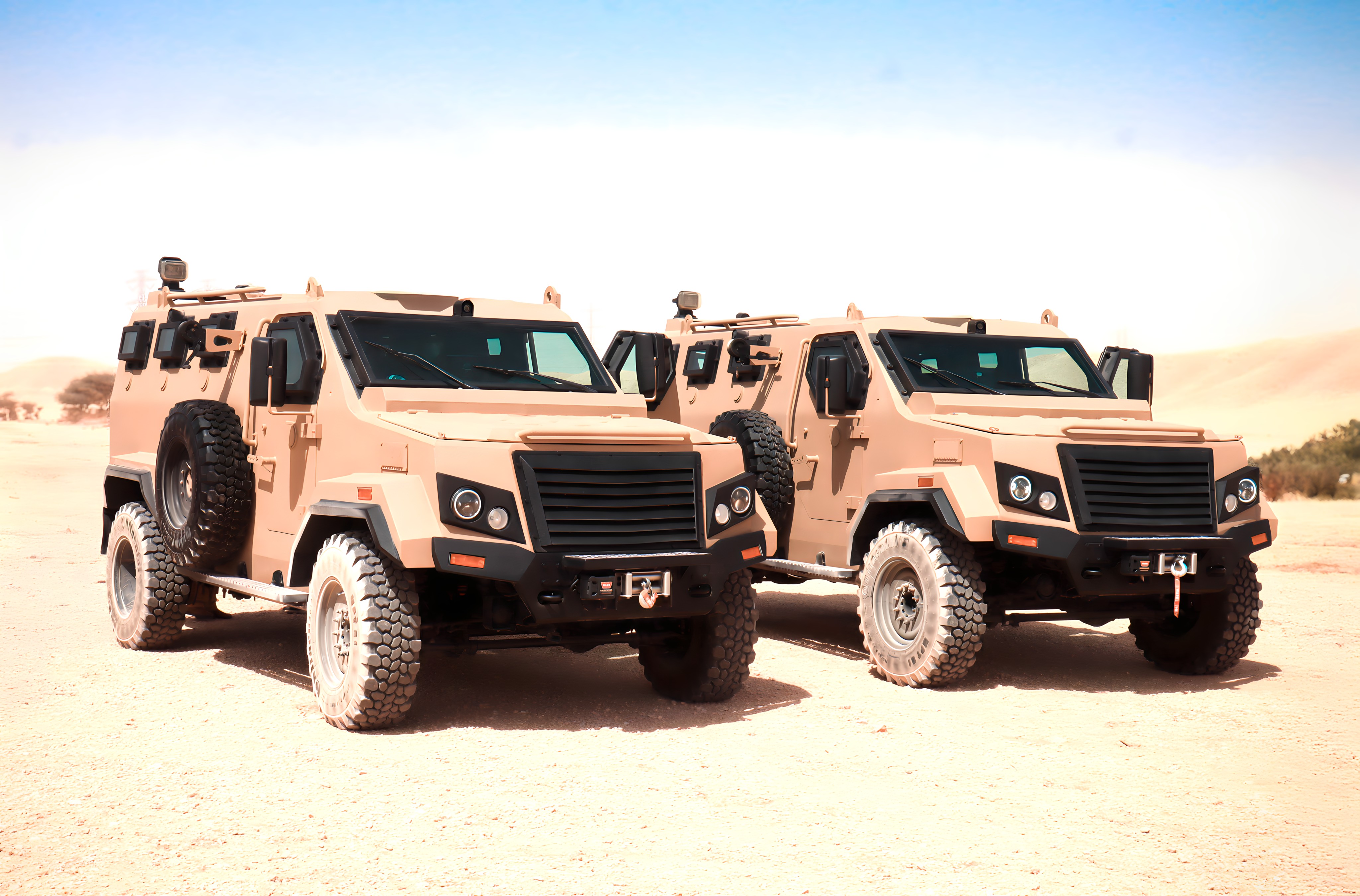

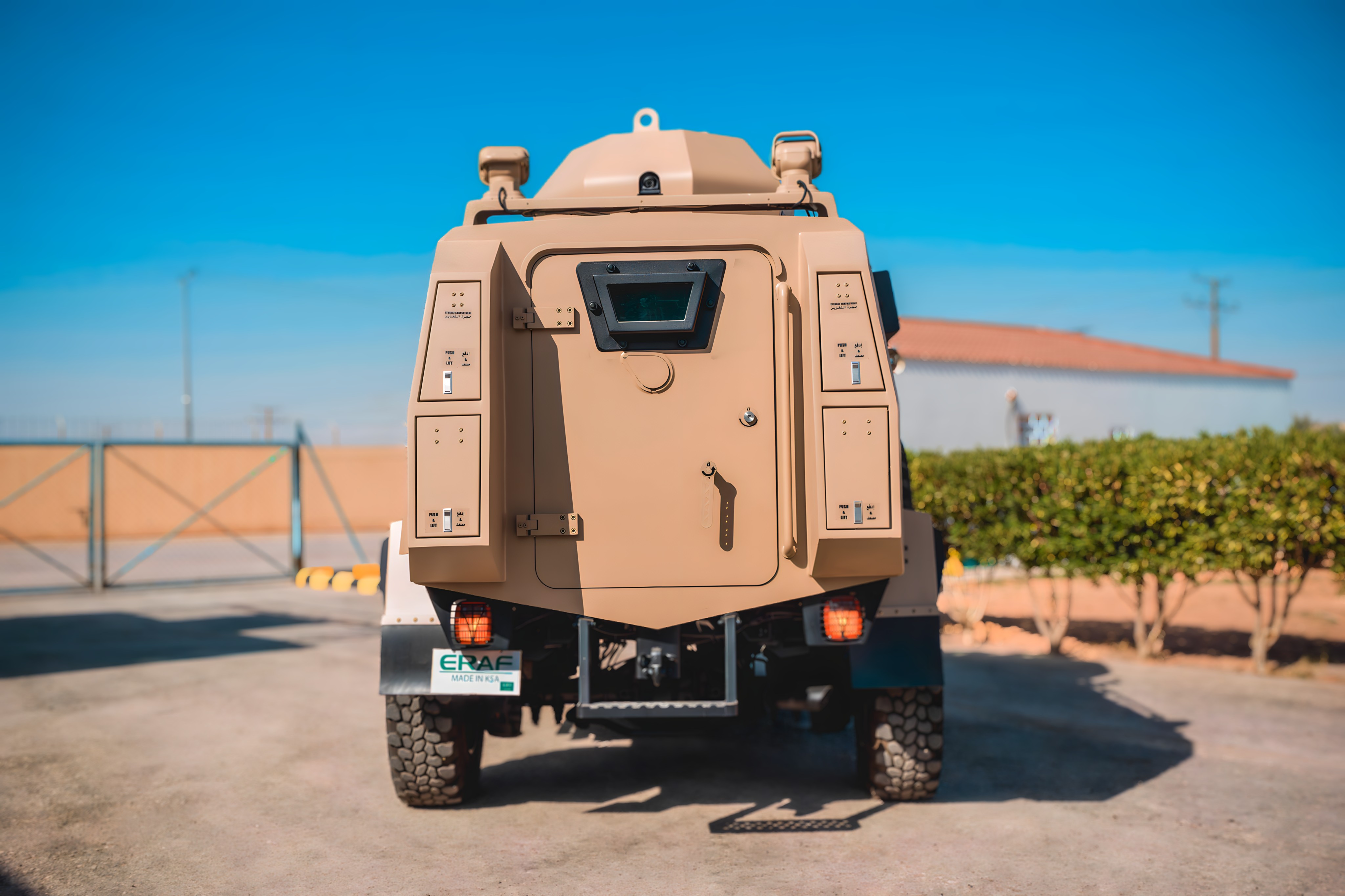

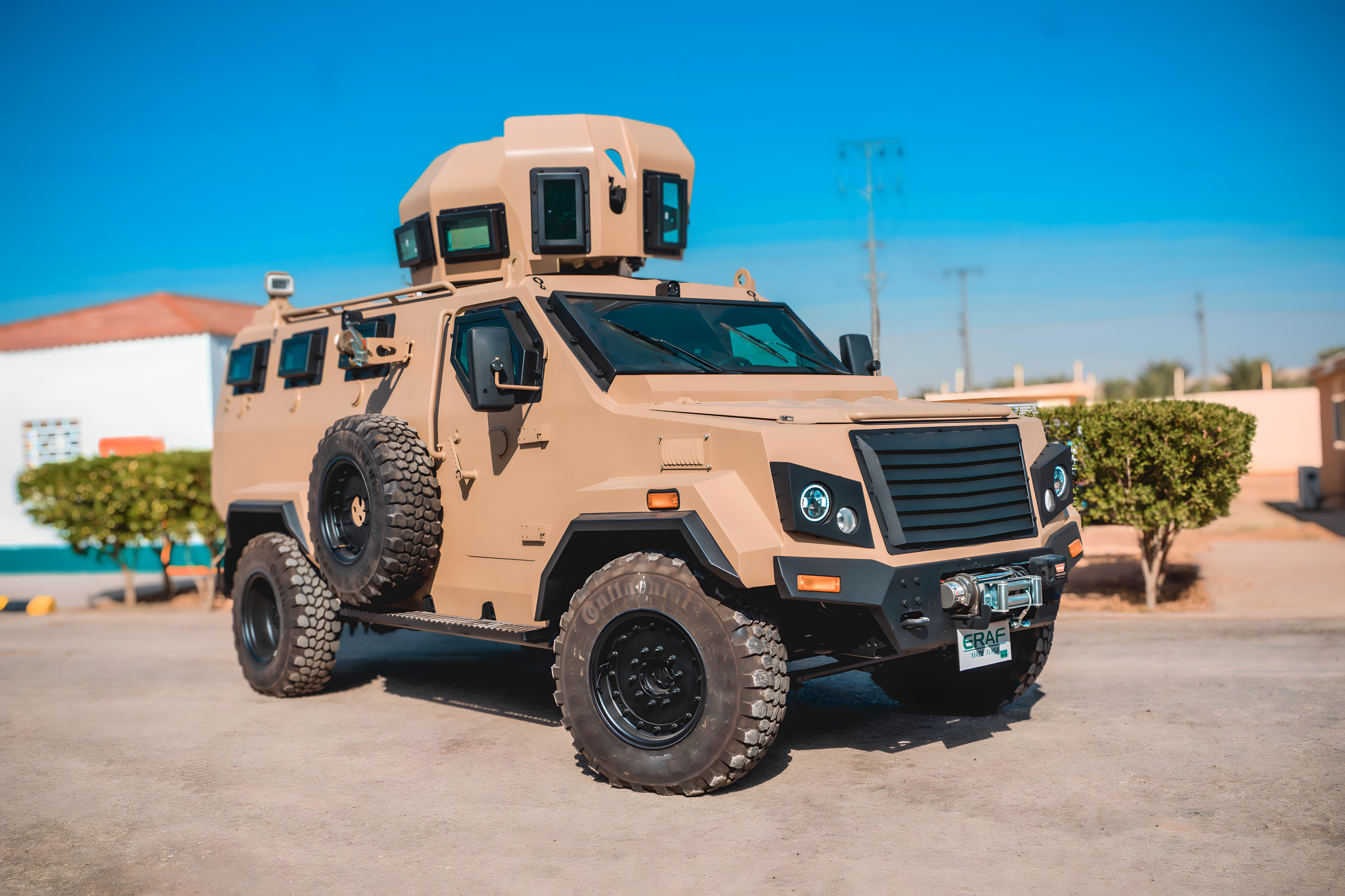

The TARES I 8TF1 is a versatile military chassis platform designed as a foundation for custom APC, command vehicles, ambulances, EOD systems, anti-tank platforms, and mobile mortar configurations with independent suspension and Monocoque V-Hull design.
Dimensions & Weight
• Wheelbase: 3300 mm
• Overall length: 5500 mm
• Overall height: 2700 mm
• Ground clearance: 360 mm
• Hull type: Monocoque V-Hull
• Kerb weight: 8000 kg
• Payload capacity: 2500 kg
• GVM (Gross Vehicle Mass): 10,000 kg
Performance & Mobility
• Max speed (on road): 120 km/h
• Range (on road): 600 km
• Gradeability: 60%
• Side slope: 40%
• Approach angle: 40°
• Departure angle: 45°
• Water fording depth: 600–700 mm
Engine & Powertrain
• Engine model: Cummins ISB 285 Hp E3, 6.7 L, 6 cyl in-line
• Max power: 285 hp @ 2500 rpm
• Max torque: 970 Nm @ 1200 rpm
• Fuel tank capacity: 200 L
• Transmission: Allison fully automatic SP series
• Transfer case: Meritor T232
Axles & Suspension
• Axle system: Meritor Series AWR
• Front axle: 5500 kg capacity
• Rear axle: 5700 kg capacity
• Front suspension: Independent
• Rear suspension: Independent
• Wheels & tyres: 335/80 R20 tyres, 20-11 SDC rims
• Brakes: Full air brake system, disc front & rear, ABS
• Steering: Hydraulic power assisted
Mission Configurations
• Protection level: STANAG Level II
• Hull design: Monocoque V-Hull
Dimensions & Weight
• Wheelbase: 3300 mm
• Overall length: 5500 mm
• Overall height: 2700 mm
• Ground clearance: 360 mm
• Hull type: Monocoque V-Hull
• Kerb weight: 8000 kg
• Payload capacity: 2500 kg
• GVM (Gross Vehicle Mass): 10,000 kg
Performance & Mobility
• Max speed (on road): 120 km/h
• Range (on road): 600 km
• Gradeability: 60%
• Side slope: 40%
• Approach angle: 40°
• Departure angle: 45°
• Water fording depth: 600–700 mm
Engine & Powertrain
• Engine model: Cummins ISB 285 Hp E3, 6.7 L, 6 cyl in-line
• Max power: 285 hp @ 2500 rpm
• Max torque: 970 Nm @ 1200 rpm
• Fuel tank capacity: 200 L
• Transmission: Allison fully automatic SP series
• Transfer case: Meritor T232
Axles & Suspension
• Axle system: Meritor Series AWR
• Front axle: 5500 kg capacity
• Rear axle: 5700 kg capacity
• Front suspension: Independent
• Rear suspension: Independent
• Wheels & tyres: 335/80 R20 tyres, 20-11 SDC rims
• Brakes: Full air brake system, disc front & rear, ABS
• Steering: Hydraulic power assisted
Mission Configurations
• Protection level: STANAG Level II
• Hull design: Monocoque V-Hull
Core Features
Adaptable Platform
Purpose-built 8-ton military chassis designed for custom up-armor conversions. Supports APC, command vehicles, ambulances, EOD, anti-tank, and mobile mortar system configurations.
Performance Powertrain
Cummins ISB 6.7L engine with 285 Hp delivers 970 Nm torque. Allison fully automatic transmission with Meritor T232 transfer case for responsive tactical operations.
Extreme Terrain Mobility
Conquers 60° slopes and 40% side slopes with independent front/rear suspension. Monocoque V-hull design with 360 mm ground clearance and 600-700 mm water fording capability.
High Integration Capacity
2500 kg payload with 10,000 kg GVM. Optimized for integration of advanced armor packages, weapon systems, and specialized mission equipment.
Superior Geometry
40° approach angle and 45° departure angle enable rapid obstacle crossing. Advanced angles support tactical maneuverability and complex terrain navigation.
Mission Flexibility
Scalable chassis platform supports rapid conversion between command, fire support, medical, and specialist roles. Enables cost-effective multi-mission force structures.
