TARES_III-T10C1
Saudi-engineered lightweight 10-ton MRAP optimized for rapid deployment with STANAG Level II protection (upgradeable) and robust mobility in high-threat environments.
TARES_III-T10C1
Saudi-engineered lightweight 10-ton MRAP optimized for rapid deployment with STANAG Level II protection (upgradeable) and robust mobility in high-threat environments.
TARES_III-T10C1
Overview
File Attachment
.jpg)
.jpg)
Specifications
Description

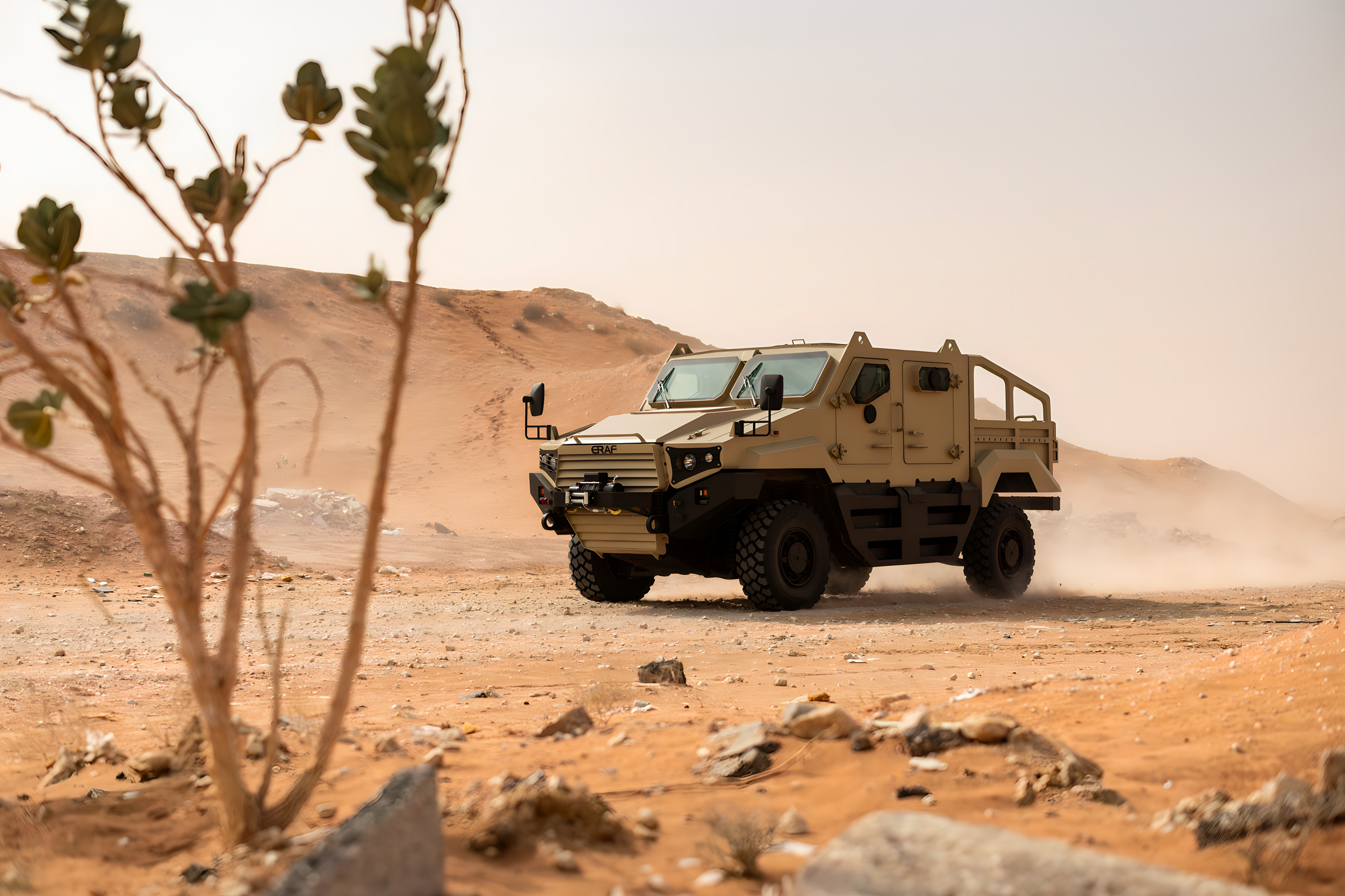

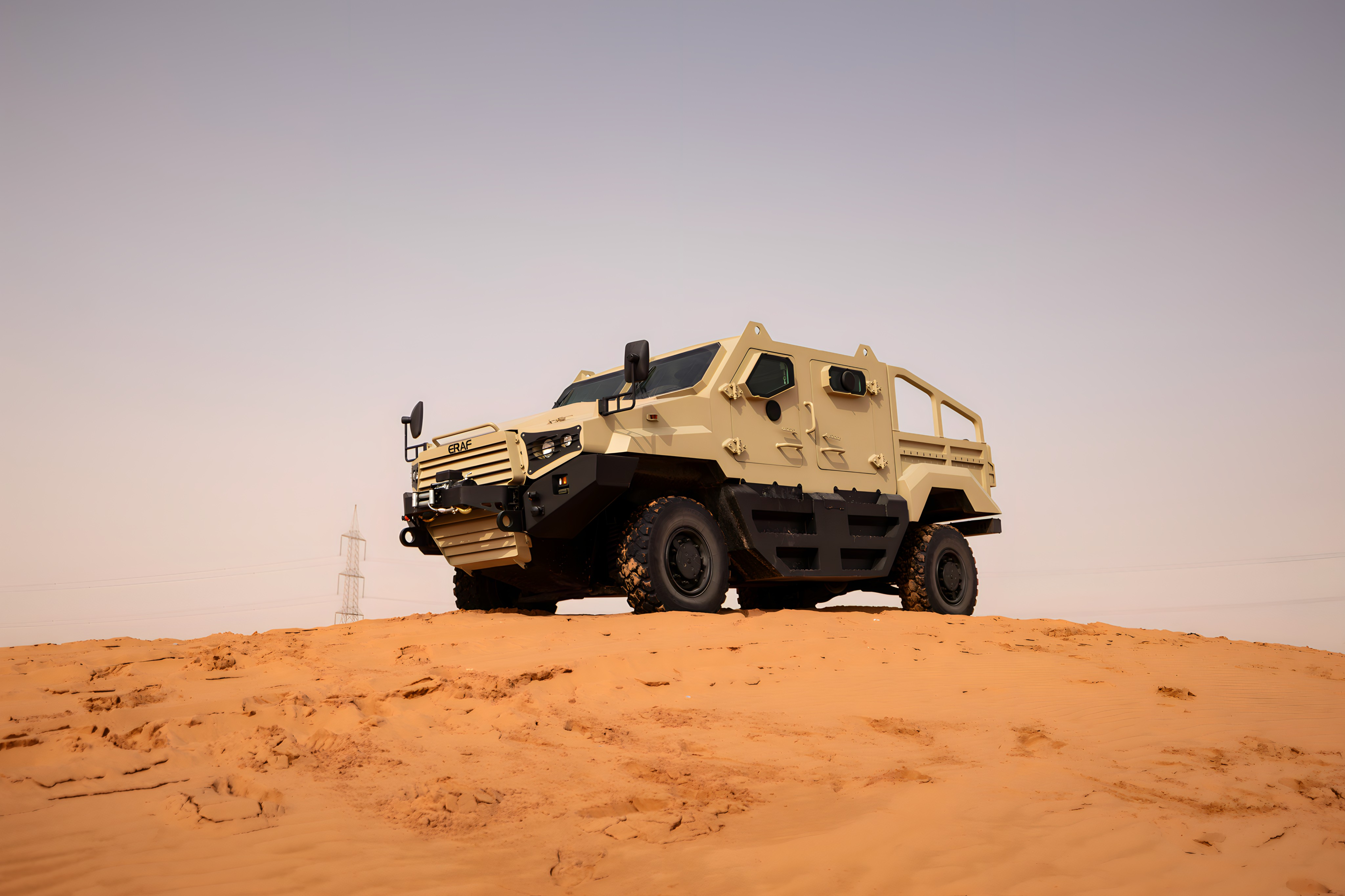

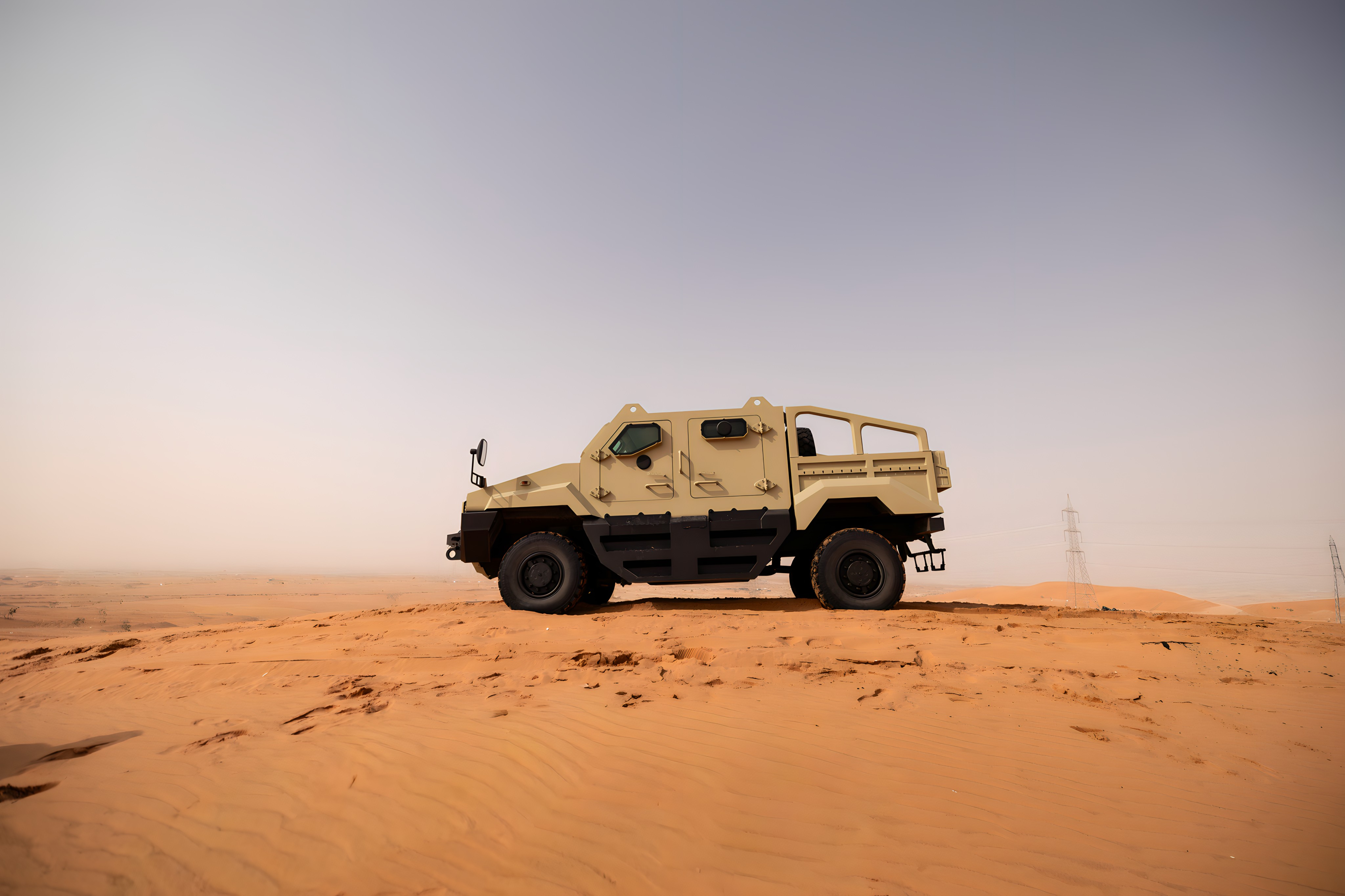

The TARES III-T10C1 is a lightweight, high-mobility MRAP delivering rapid deployment capabilities, independent suspension on both axles, and Monocoque V-Hull protection for maximum crew survivability in demanding operational scenarios.
Dimensions & Weight
• Wheelbase: 3300 mm
• Overall length: 6300 mm
• Overall height: 2600 mm
• Ground clearance: 360 mm
• Hull type: Monocoque V-Hull
• Kerb weight: 8500 kg
• Payload capacity: 1000 kg
• GVM (Gross Vehicle Mass): 10,500 kg
Performance & Mobility
• Max speed (on road): 110 km/h
• Range (on road): 600 km
• Gradeability: 60%
• Side slope: 40%
• Approach angle: 36°
• Departure angle: 40°
• Water fording depth: 600–700 mm
Engine & Powertrain
• Engine model: Cummins ISB 285 Hp E3, 6.7 L, 6 cyl in-line
• Max power: 285 hp @ 2500 rpm
• Max torque: 970 Nm @ 1200 rpm
• Fuel tank capacity: 200 L
• Transmission: Allison fully automatic SP series
• Transfer case: AxleTech T232
Chassis, Axles & Suspension
• Axle system: AxleTech 3000 Series AWR
• Front axle: 5500 kg capacity
• Rear axle: 5700 kg capacity
• Front suspension: Independent
• Rear suspension: Independent
• Wheels & tyres: 335/80 R20 tyres, 20-11 SDC rims
• Brakes: Full air brake system, disc front & rear, ABS
• Steering: Hydraulic power assisted
Protection & Survivability
• Protection level: STANAG Level II (upgradeable)
• Hull design: Monocoque V-Hull
Dimensions & Weight
• Wheelbase: 3300 mm
• Overall length: 6300 mm
• Overall height: 2600 mm
• Ground clearance: 360 mm
• Hull type: Monocoque V-Hull
• Kerb weight: 8500 kg
• Payload capacity: 1000 kg
• GVM (Gross Vehicle Mass): 10,500 kg
Performance & Mobility
• Max speed (on road): 110 km/h
• Range (on road): 600 km
• Gradeability: 60%
• Side slope: 40%
• Approach angle: 36°
• Departure angle: 40°
• Water fording depth: 600–700 mm
Engine & Powertrain
• Engine model: Cummins ISB 285 Hp E3, 6.7 L, 6 cyl in-line
• Max power: 285 hp @ 2500 rpm
• Max torque: 970 Nm @ 1200 rpm
• Fuel tank capacity: 200 L
• Transmission: Allison fully automatic SP series
• Transfer case: AxleTech T232
Chassis, Axles & Suspension
• Axle system: AxleTech 3000 Series AWR
• Front axle: 5500 kg capacity
• Rear axle: 5700 kg capacity
• Front suspension: Independent
• Rear suspension: Independent
• Wheels & tyres: 335/80 R20 tyres, 20-11 SDC rims
• Brakes: Full air brake system, disc front & rear, ABS
• Steering: Hydraulic power assisted
Protection & Survivability
• Protection level: STANAG Level II (upgradeable)
• Hull design: Monocoque V-Hull
Core Features
Scalable Protection
STANAG Level II ballistic protection with monocoque V-hull design. Upgradeable architecture for enhanced threat protection as requirements evolve.
Responsive Powertrain
Cummins ISB 6.7L engine with 285 Hp delivers 970 Nm torque. Allison fully automatic transmission (SP Series) with Axletech T232 transfer case for reliable performance.
Exceptional Agility
Lightweight 10-ton design enables rapid deployment and superior mobility. Conquers 60° slopes and 40% side slopes with independent suspension and 360 mm ground clearance.
Efficient Payload
1000 kg payload with 10,500 kg GVM. Optimized for personnel transport, reconnaissance, and tactical support missions in dynamic environments.
Advanced Geometry
40° approach angle and 36° departure angle with 600-700 mm water fording capability. Designed for rapid obstacle crossing and complex terrain navigation.
Rapid Mobility
Compact wheelbase (3300 mm) with 200-liter fuel tank. Optimized for quick response operations and fast-moving tactical deployments with extended operational range.
