Mobile Mortar System
Rapid, precise indirect fire support on IVECO 70-180 MUV platform, fully integrated for modern battlefields and operational flexibility.
Mobile Mortar System
Rapid, precise indirect fire support on IVECO 70-180 MUV platform, fully integrated for modern battlefields and operational flexibility.
Mobile Mortar System
Overview
File Attachment.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Specifications
Description

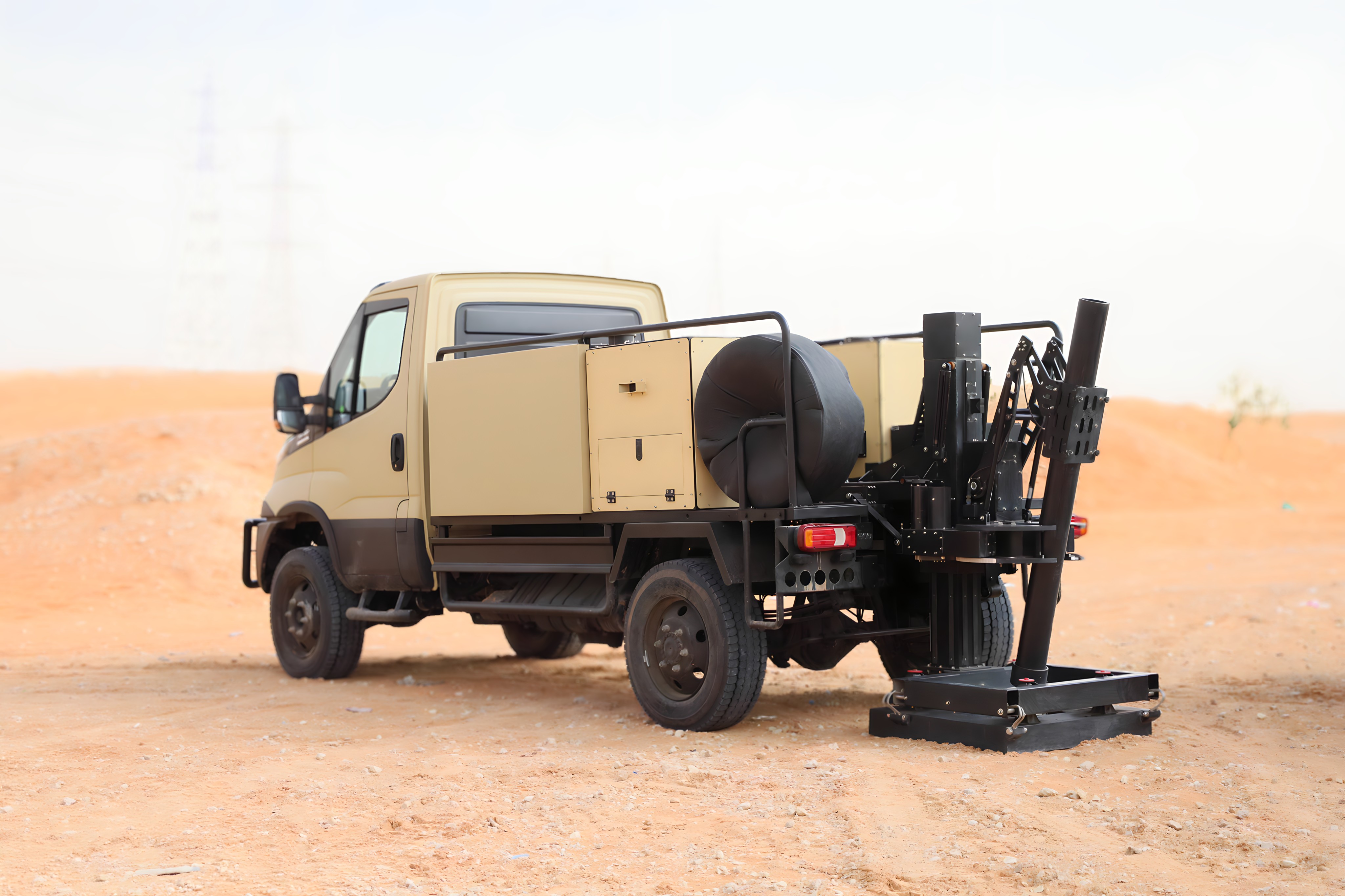

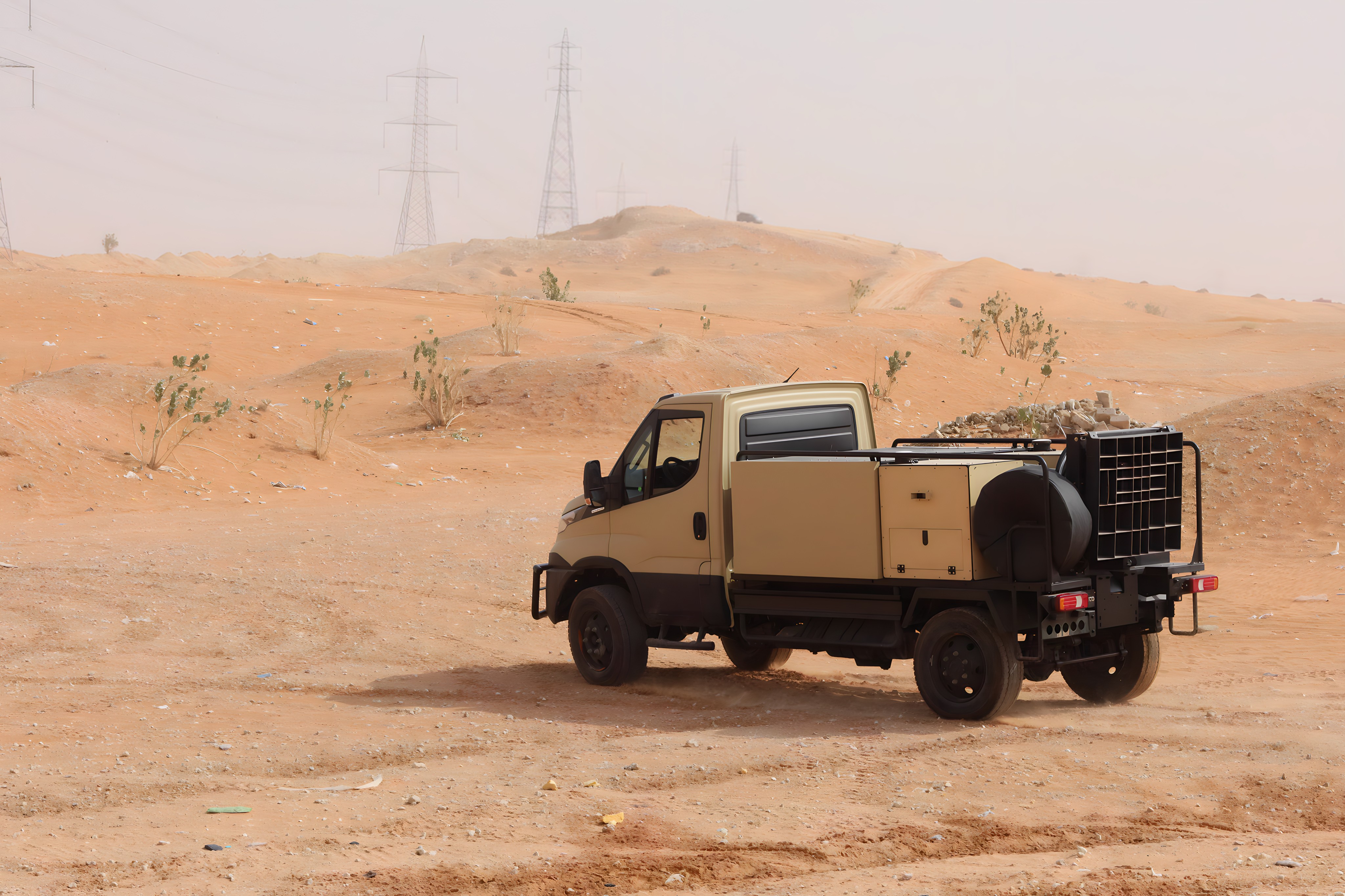

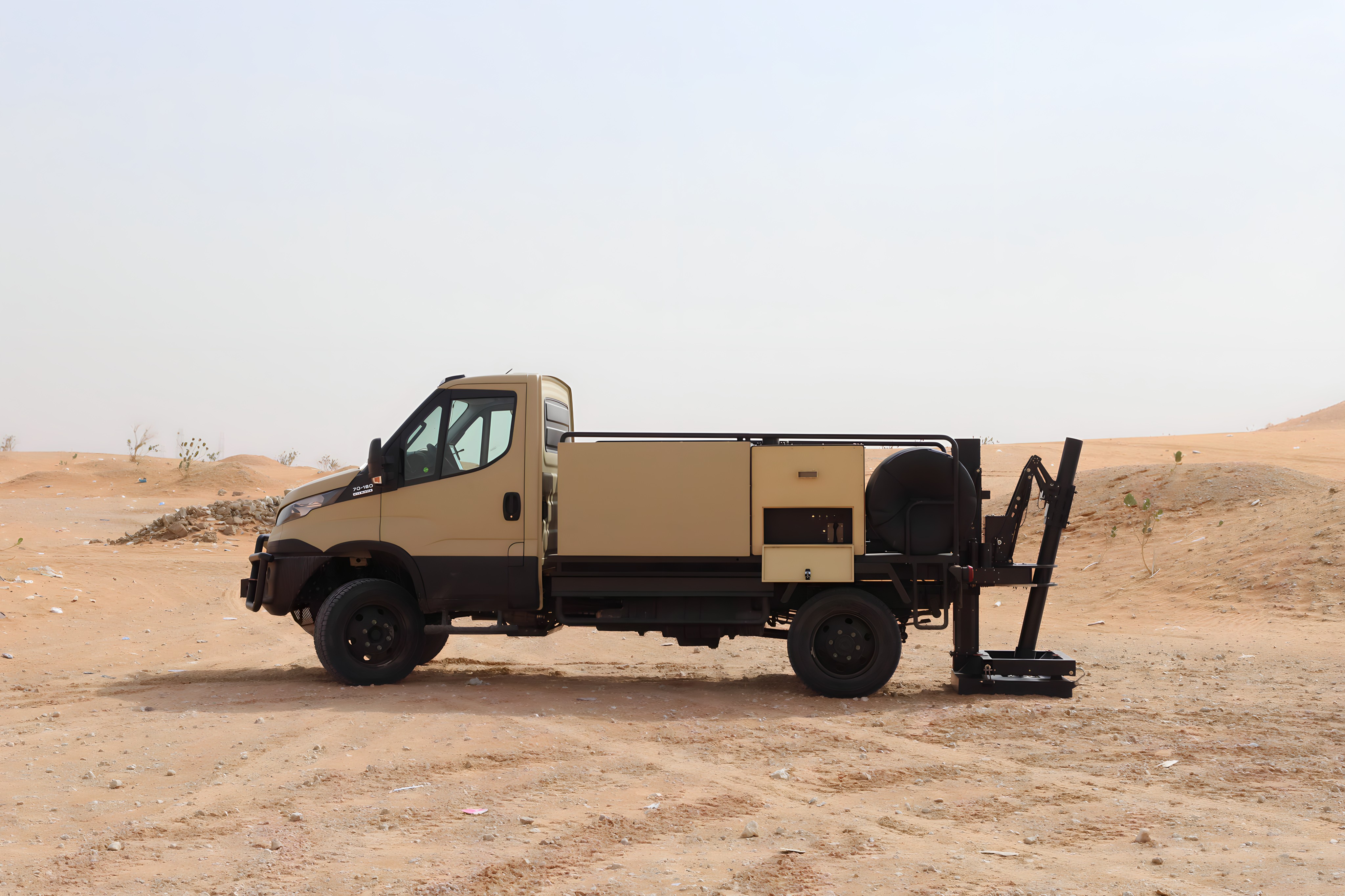

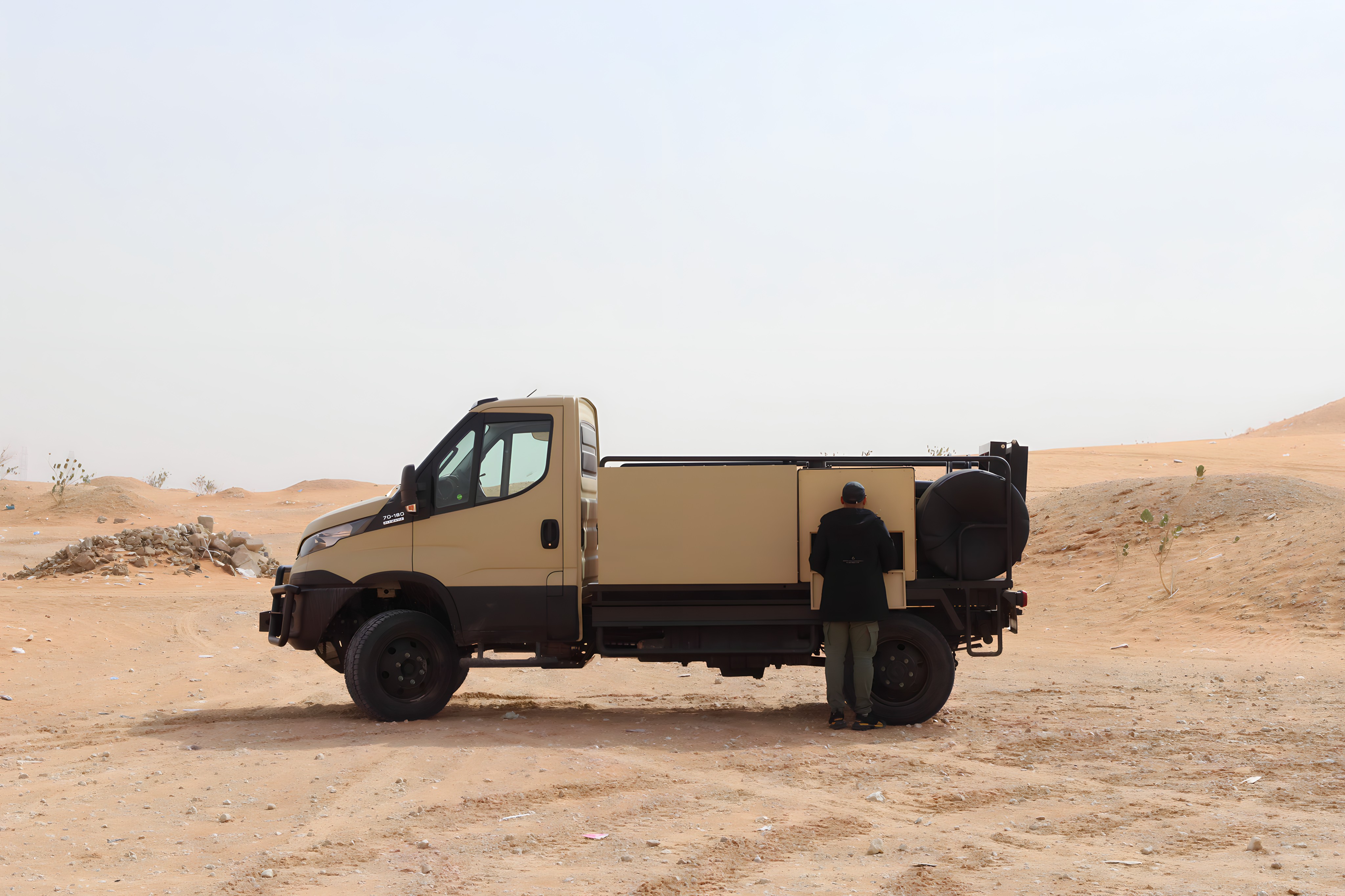

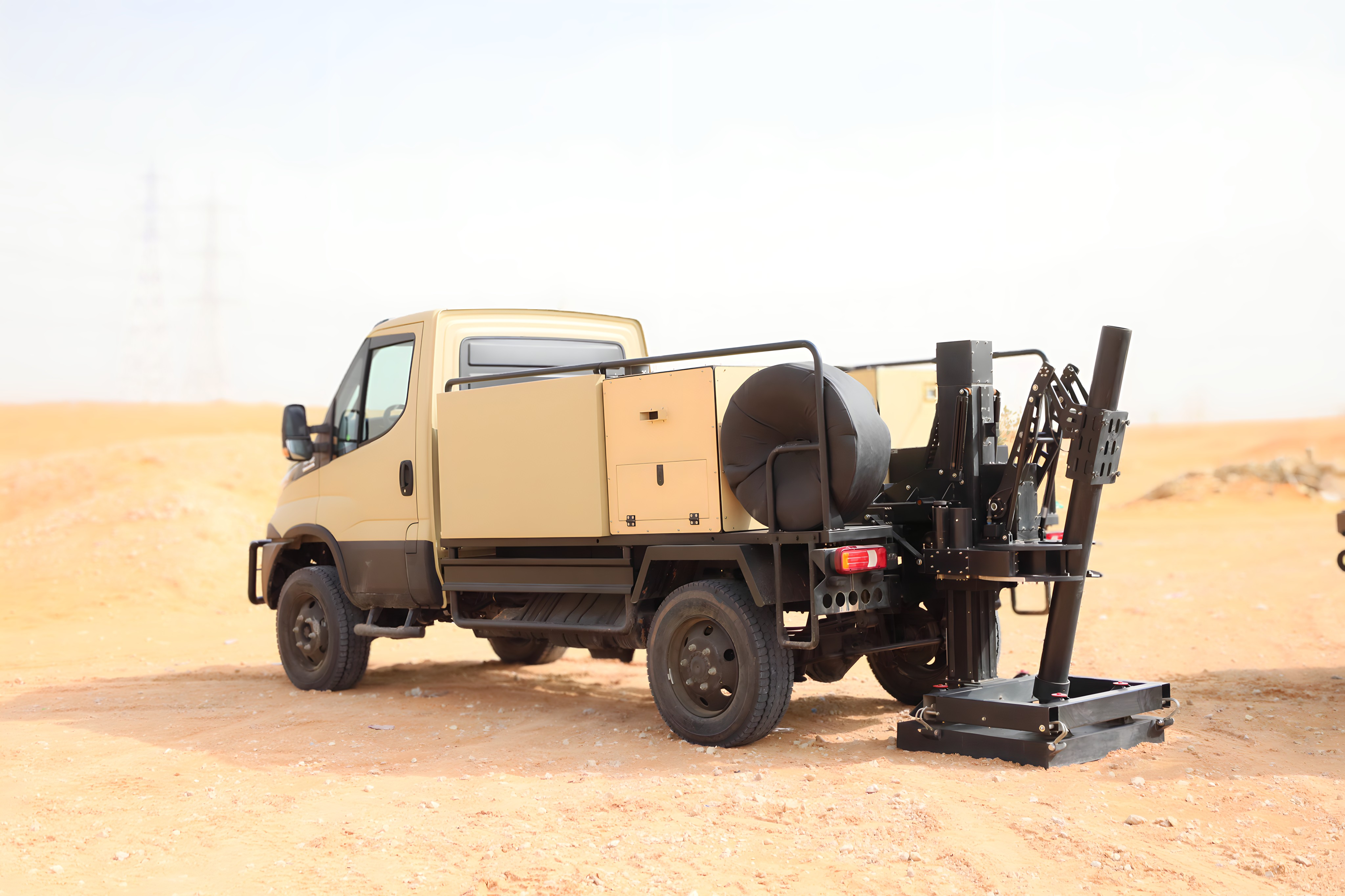

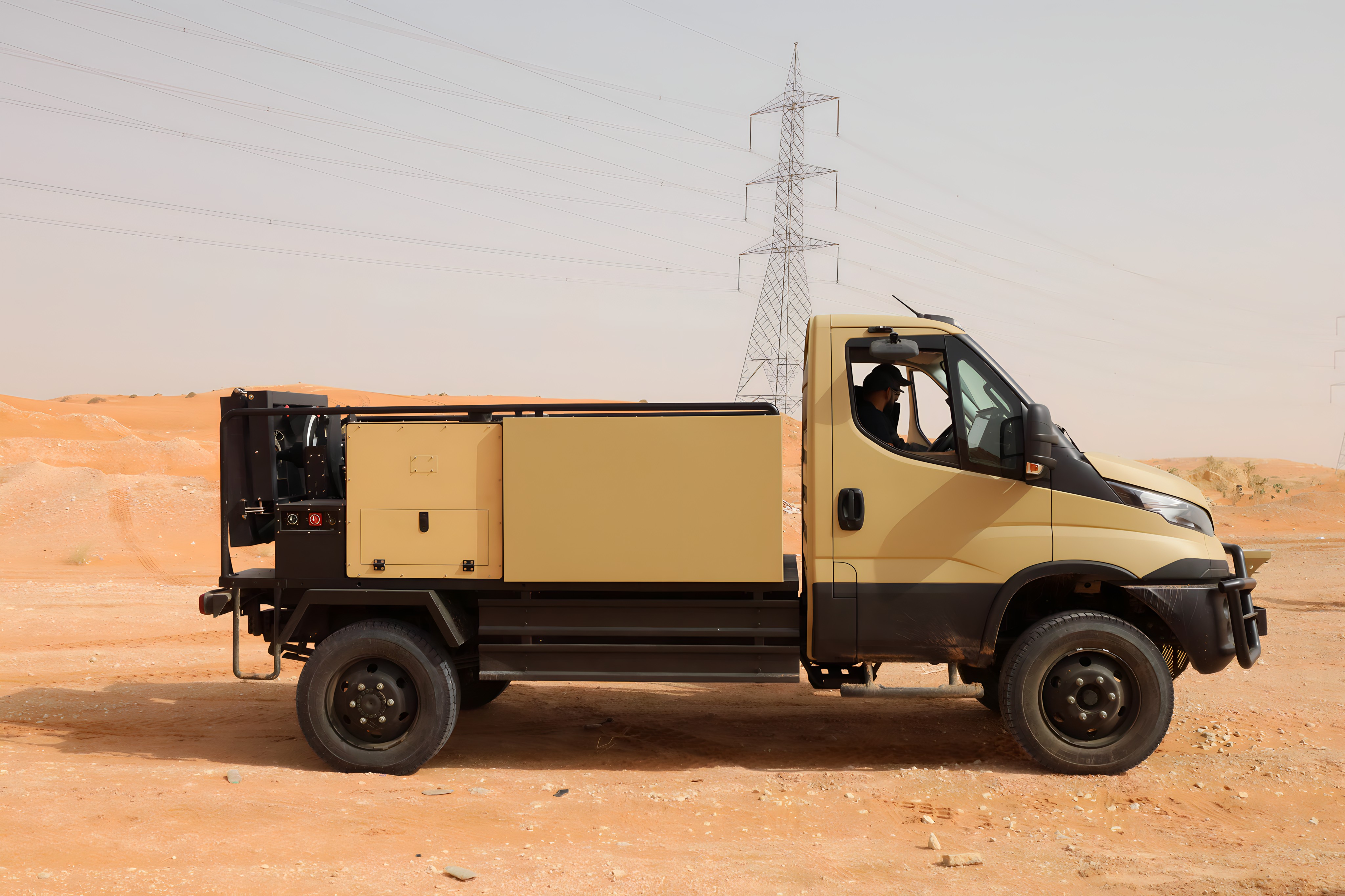

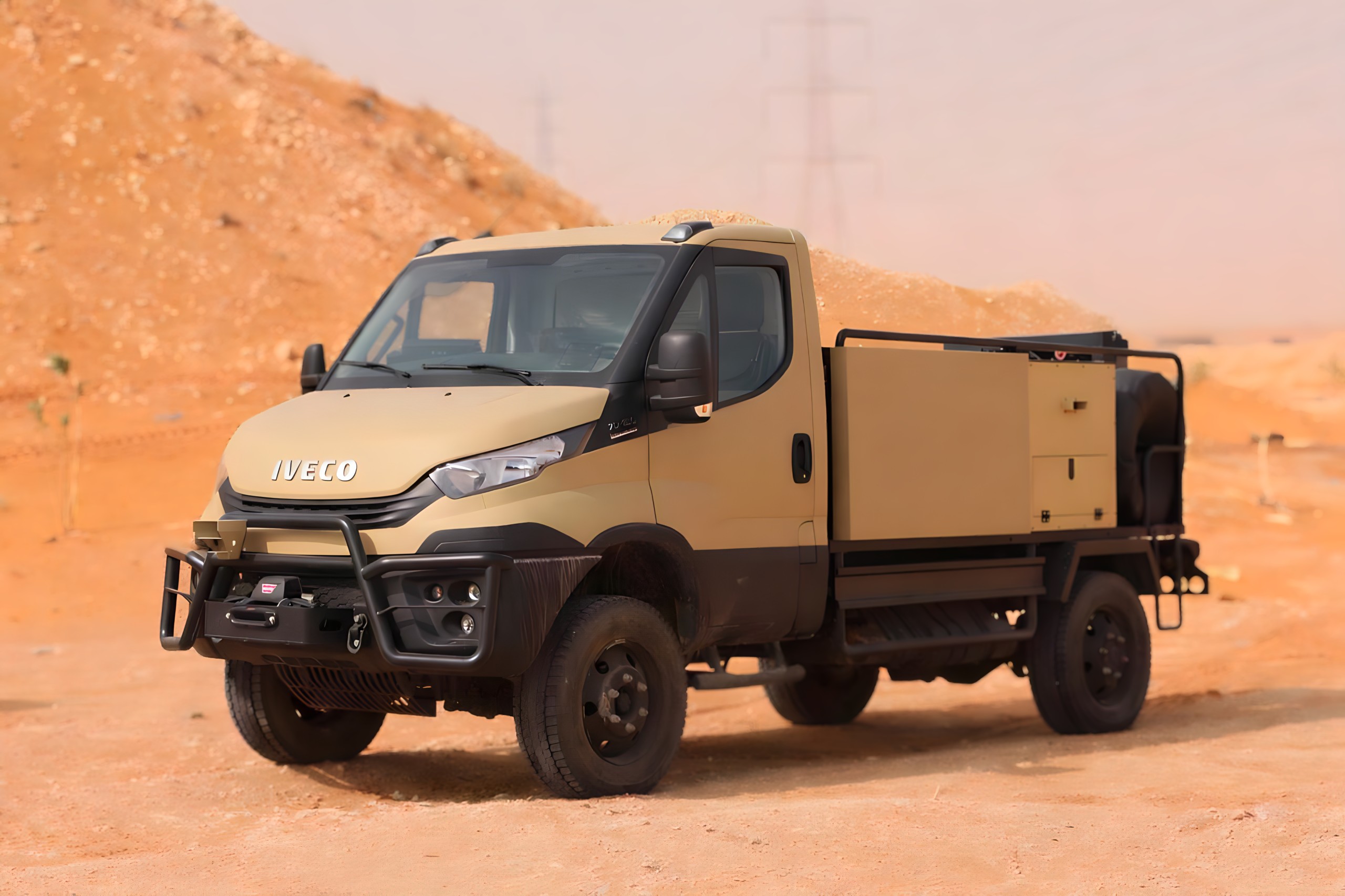

The ERAF Alakran Mobile Mortar System combines proven COTS components, rugged 4×4 mobility, and rapid deployment capabilities for modern battlefield requirements.
Dimensions & Weight
• Drive type: 4×4
• Wheelbase: 3780 mm
• Overall length: 5881 mm
• Overall width: 2075 mm
• Overall height: 2458 mm
• Ground clearance (F/R): 220 / 220 mm
Performance & Payload
• Top speed: 110 km/h
• Gradient capability: 60%
• Side slope (at GVW): 30%
• Approach angle: 37°
• Departure angle: 30°
• Payload capacity: Up to 4000 kg
• GVW (Gross Vehicle Weight): 7000 kg
• Towing capability: 3500 kg
• Fording depth (no prep): 600 mm
• Operating temperature range: −32°C to +49°C
Engine & Drivetrain
• Engine model: FPT F1C 3.0L
• Power rating: 180 hp Euro III
• Alternator capacity: 180A
• Transmission: 8-speed, optional torque converter
• Power take-off (PTO): Available
• Seats (single cab): 2
Braking, Steering & Tyres
• Brake system: 2-circuit hydraulic (service & emergency)
• Brake type: Disc front & rear
• Safety systems: ESP, ABS, EBD
• Steering type: Power assisted (Euro III)
• Tyre options: 255/100 R16 or 265/70 R19.5 single wheel
Military Standards & Configuration
• Drive layout: LHD or RHD available
• STANAG compliance: 4569 Level (as option)
• Fuel compliance: 4362 (as option)
• Electrical connection: 2601 (as option)
• Towing attachments: 4101 (as option)
Dimensions & Weight
• Drive type: 4×4
• Wheelbase: 3780 mm
• Overall length: 5881 mm
• Overall width: 2075 mm
• Overall height: 2458 mm
• Ground clearance (F/R): 220 / 220 mm
Performance & Payload
• Top speed: 110 km/h
• Gradient capability: 60%
• Side slope (at GVW): 30%
• Approach angle: 37°
• Departure angle: 30°
• Payload capacity: Up to 4000 kg
• GVW (Gross Vehicle Weight): 7000 kg
• Towing capability: 3500 kg
• Fording depth (no prep): 600 mm
• Operating temperature range: −32°C to +49°C
Engine & Drivetrain
• Engine model: FPT F1C 3.0L
• Power rating: 180 hp Euro III
• Alternator capacity: 180A
• Transmission: 8-speed, optional torque converter
• Power take-off (PTO): Available
• Seats (single cab): 2
Braking, Steering & Tyres
• Brake system: 2-circuit hydraulic (service & emergency)
• Brake type: Disc front & rear
• Safety systems: ESP, ABS, EBD
• Steering type: Power assisted (Euro III)
• Tyre options: 255/100 R16 or 265/70 R19.5 single wheel
Military Standards & Configuration
• Drive layout: LHD or RHD available
• STANAG compliance: 4569 Level (as option)
• Fuel compliance: 4362 (as option)
• Electrical connection: 2601 (as option)
• Towing attachments: 4101 (as option)
Core Features
Integrated Firepower
ALAKRAN mortar system seamlessly integrated on rugged IVECO MUV 4x4 platform. Optimized for rapid deployment of indirect fire support capabilities in tactical operations.
Robust Powertrain
FPT F1C 3.0L diesel engine with 180 Hp delivers responsive performance. 8-speed transmission with optional torque converter ensures smooth power delivery across diverse terrain.
All-Terrain Mobility
4x4 drive with 60° gradeability and 30% side slope capability. Operates in extreme climates (-32°C to +49°C) and rough terrain with 600 mm fording depth and independent suspension.
High Payload Capacity
4000 kg payload capacity with 7000 kg GVW. Designed specifically to support integrated mortar systems and tactical fire support equipment deployment.
NATO Interoperability
STANAG 4569, 4362, 2601, and 4101 compliance options. Blackout lights and military fuel compatibility for seamless allied operations and standardized logistics.
Versatile Platform
Multi-mission capable beyond fire support: cargo transport, troop carrier, ambulance, civil protection, and fire-fighting. Available in LHD or RHD configurations.
