TARES_III_16TTC1

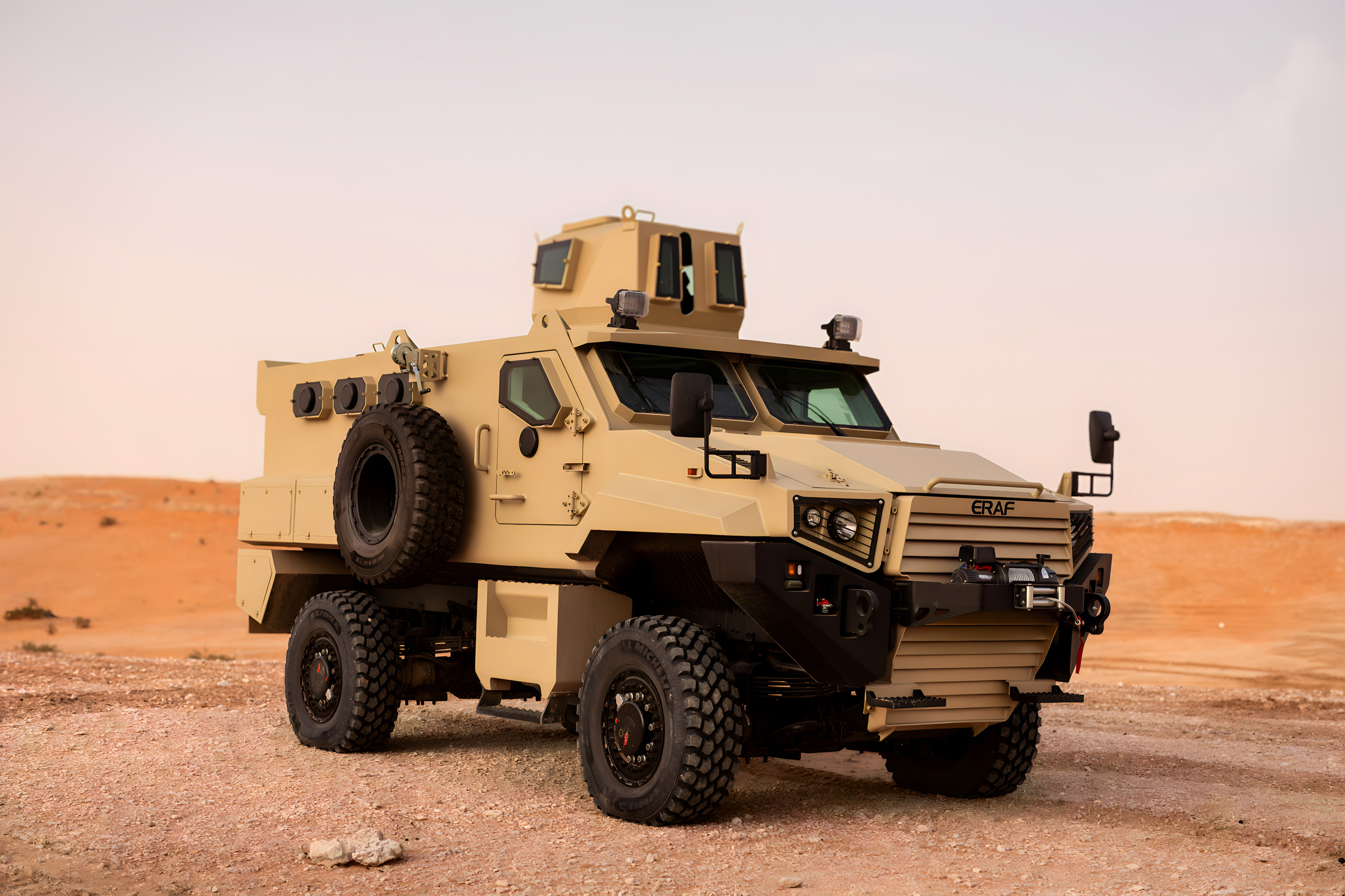

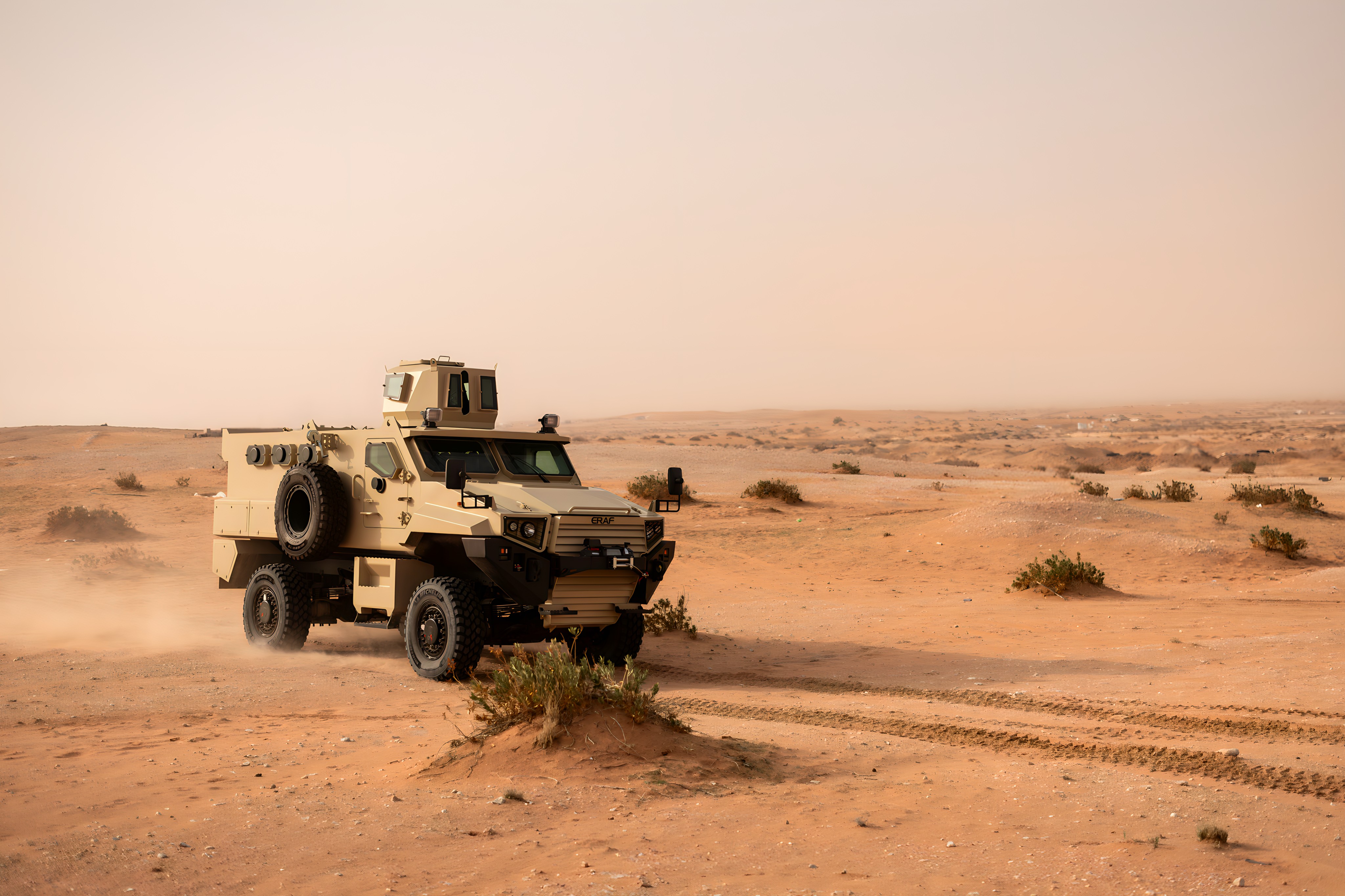

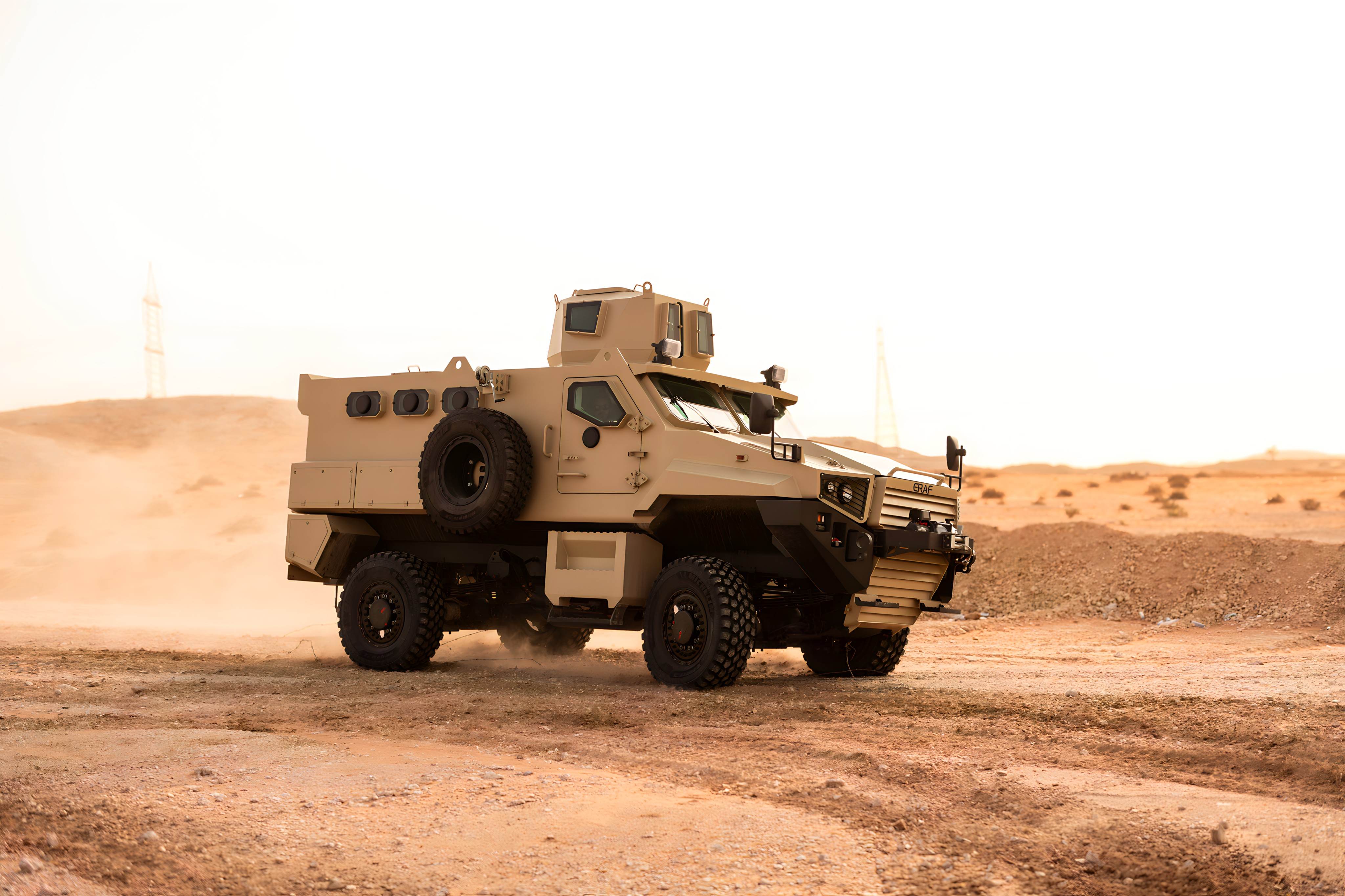

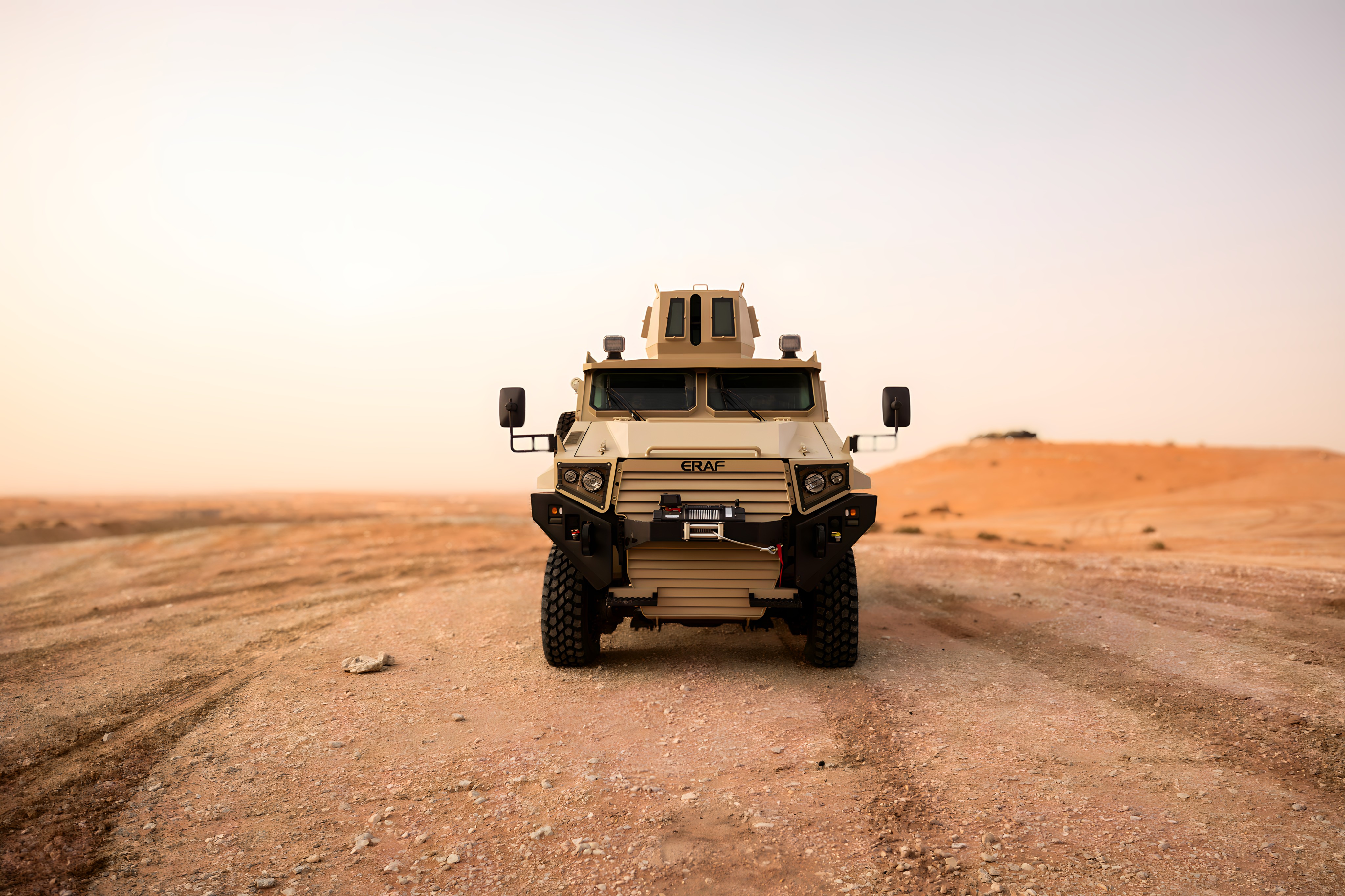

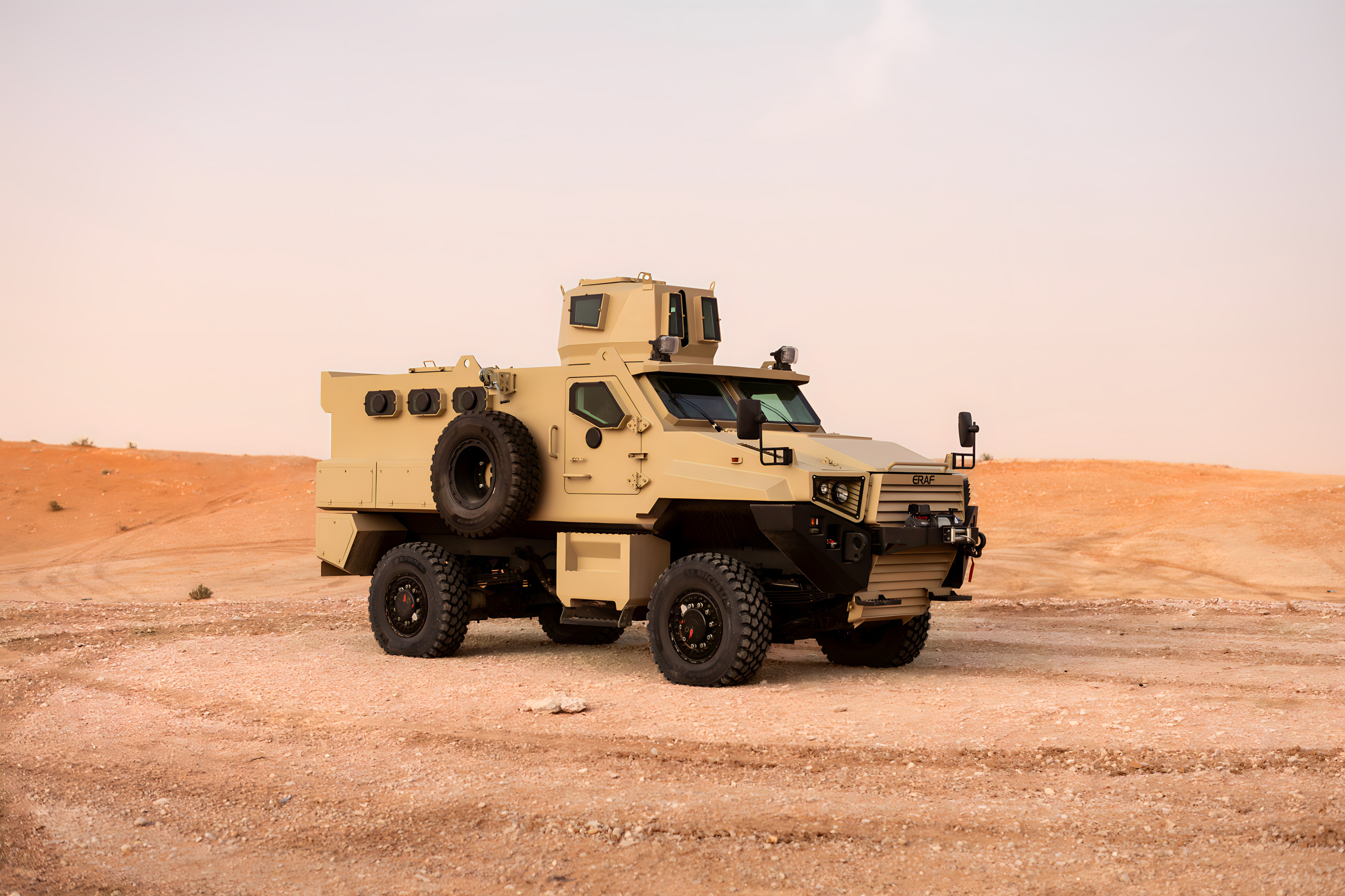

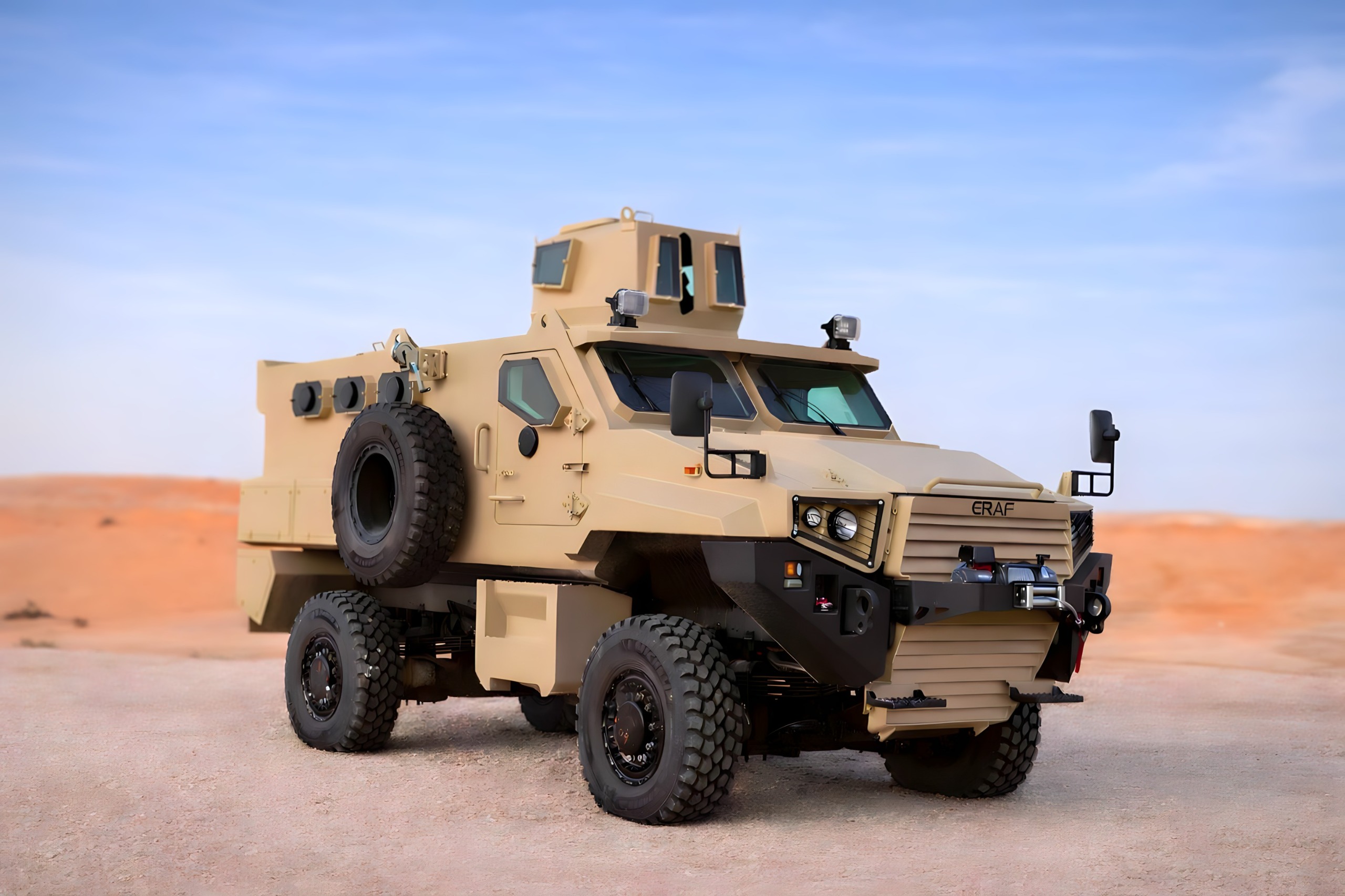

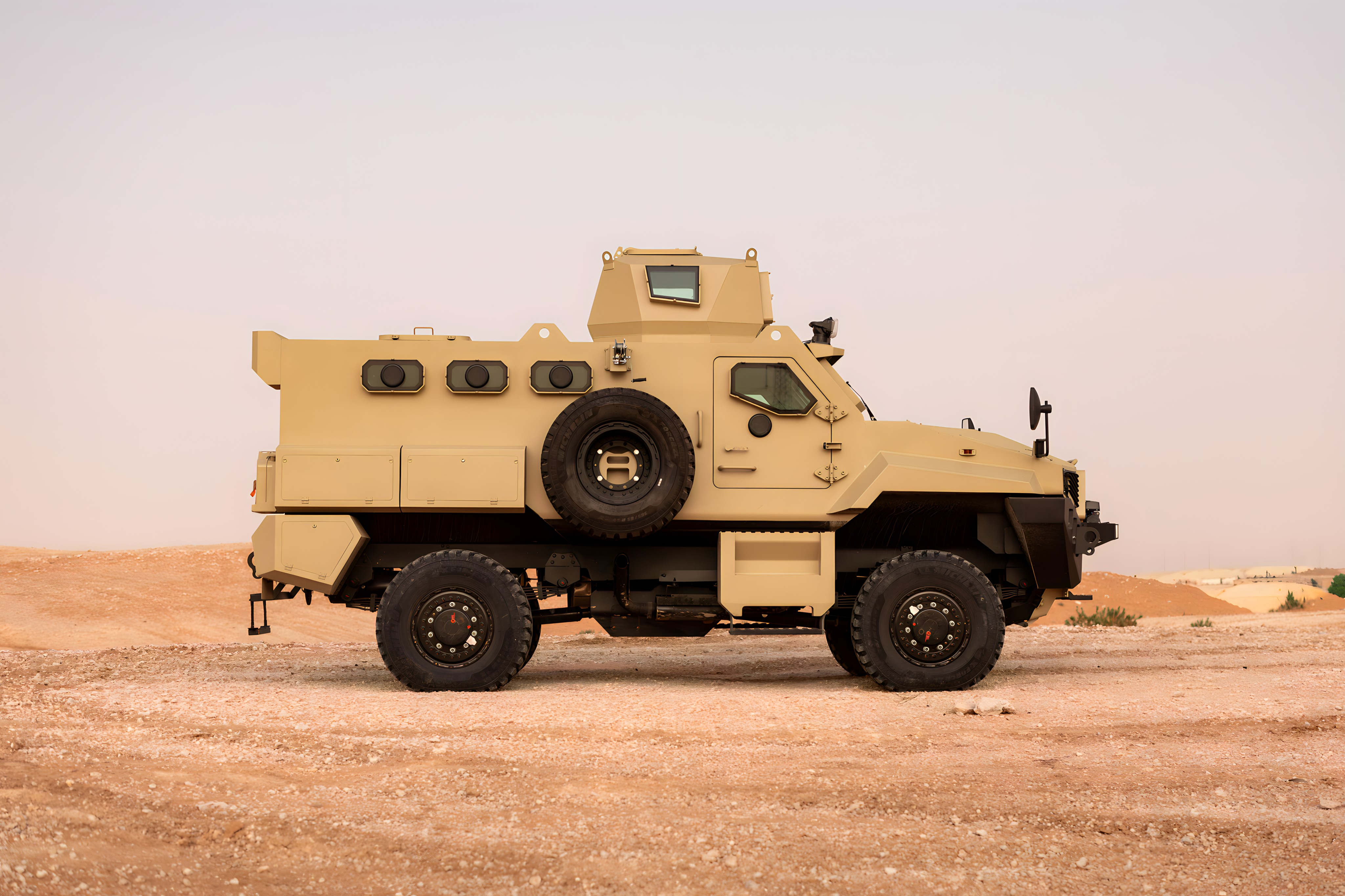

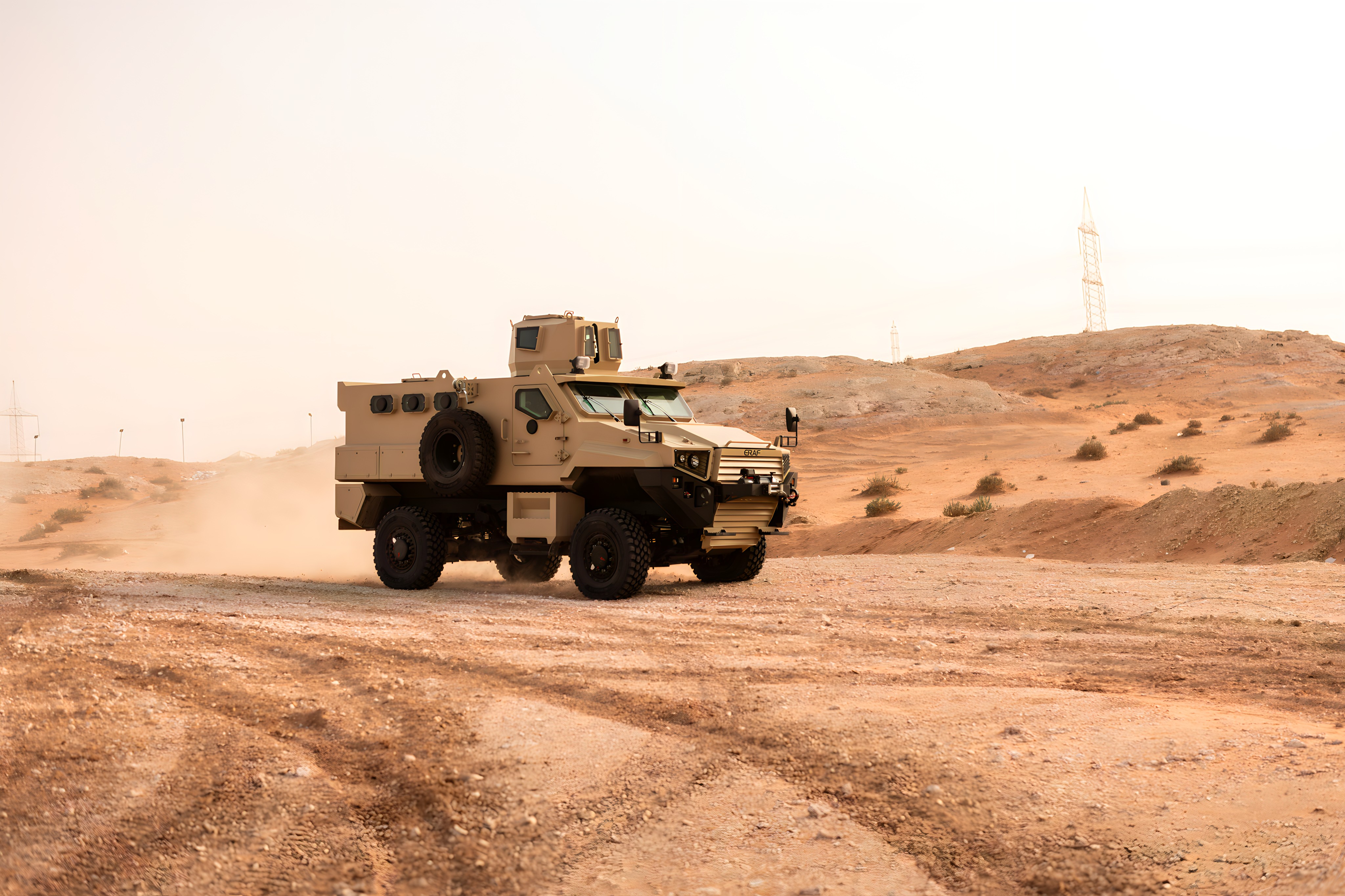

Saudi‑engineered 16‑ton Mine‑Resistant Ambush Protected (MRAP) vehicle designed for superior protection and tactical flexibility.
TARES_III_16TTC1
Saudi‑engineered 16‑ton Mine‑Resistant Ambush Protected (MRAP) vehicle designed for superior protection and tactical flexibility.
TARES_III_16TTC1
Overview
File Attachment
Specifications
Description
The TARES III-16TC1 combines STANAG Level III protection, high off‑road mobility, and configurable mission systems to support defense and internal security operations.
Dimensions & Weight
• Length : 6910 mm (3625 mm with turret)
• Width : 2820 mm
• Height : 2635 mm
• Kerb weight (est.) : 8000 kg
• Payload : ≈ 8000 kg
• GVM : 16,000 kg
Performance
• Max speed (on road) : 110 km/h
• Range (on road) : 600 km
• Gradeability : 60%
• Side slope : 30%
Engine & Powertrain
• Engine model : Cummins ISB 6.7 HPRC, 6 cyl in-line
• Max power : 360 hp @ 2500 rpm
• Max torque : 1100 Nm @ 1400 rpm
• Fuel tank capacity : 265 L
• Transmission : Allison fully automatic SP series, 6F / 1R
• Transfer case : Power Line 4×2 / 4×4, N-Low-High, locking system
Chassis, Axles & Suspension
• Front axle : 8000 kg, drive, steer, rigid, differential locking
• Rear axle : 8500 kg, drive, rigid, differential locking
• Front suspension : Parabolic leaf spring, shock absorbers, anti-roll bar
• Rear suspension : Parabolic leaf spring, shock absorbers, anti-roll bar
• Wheels & tyres : 365/85 R20 tyres, 10.00W-20 rims, AxleTech
Mobility & Safety Systems
• Brakes : Full air brake system, disc front & rear, ABS
• Steering : Powered integral hydraulic servo
• Central tyre inflation : CTIS with military connectors
Protection & Standard Features
• Protection level : STANAG Level III
Dimensions & Weight
• Length : 6910 mm (3625 mm with turret)
• Width : 2820 mm
• Height : 2635 mm
• Kerb weight (est.) : 8000 kg
• Payload : ≈ 8000 kg
• GVM : 16,000 kg
Performance
• Max speed (on road) : 110 km/h
• Range (on road) : 600 km
• Gradeability : 60%
• Side slope : 30%
Engine & Powertrain
• Engine model : Cummins ISB 6.7 HPRC, 6 cyl in-line
• Max power : 360 hp @ 2500 rpm
• Max torque : 1100 Nm @ 1400 rpm
• Fuel tank capacity : 265 L
• Transmission : Allison fully automatic SP series, 6F / 1R
• Transfer case : Power Line 4×2 / 4×4, N-Low-High, locking system
Chassis, Axles & Suspension
• Front axle : 8000 kg, drive, steer, rigid, differential locking
• Rear axle : 8500 kg, drive, rigid, differential locking
• Front suspension : Parabolic leaf spring, shock absorbers, anti-roll bar
• Rear suspension : Parabolic leaf spring, shock absorbers, anti-roll bar
• Wheels & tyres : 365/85 R20 tyres, 10.00W-20 rims, AxleTech
Mobility & Safety Systems
• Brakes : Full air brake system, disc front & rear, ABS
• Steering : Powered integral hydraulic servo
• Central tyre inflation : CTIS with military connectors
Core Features
Advanced Protection
STANAG Level III ballistic protection ensures comprehensive crew safety against modern threats while maintaining operational mobility.
Reliable Powertrain
Cummins ISB 6.7L engine with 360 Hp delivers 1100 Nm torque. Allison fully automatic transmission (6F/1R) for smooth, responsive performance.
Superior Mobility
4x2/4x4 selectable drive with differential locking. Conquers 60° slopes and 30% side slopes with parabolic leaf spring suspension.
Payload Capacity
8000 kg payload with 16,000 kg GVM. Designed for tactical equipment, personnel transport, and specialized mission requirements.
Tactical Systems
360° search light, tactical/blackout lighting, CTIS tire inflation system, military connectors, and full suite of operational tools.
Field-Ready
Includes pioneer kit, towing hooks (front/rear), 6800 DaN winch, trailer brake, storage boxes, and dual AC climate control.
