Armored Guardroom
B7/VPAM PM9 ballistic-blast protected pentagonal fortress for 2 personnel. 360° visibility and defense, perfect for checkpoints, perimeters, and rapid deployment security operations.
Armored Guardroom
B7/VPAM PM9 ballistic-blast protected pentagonal fortress for 2 personnel. 360° visibility and defense, perfect for checkpoints, perimeters, and rapid deployment security operations.
Armored Guardroom
Overview
File Attachment
Specifications
Description

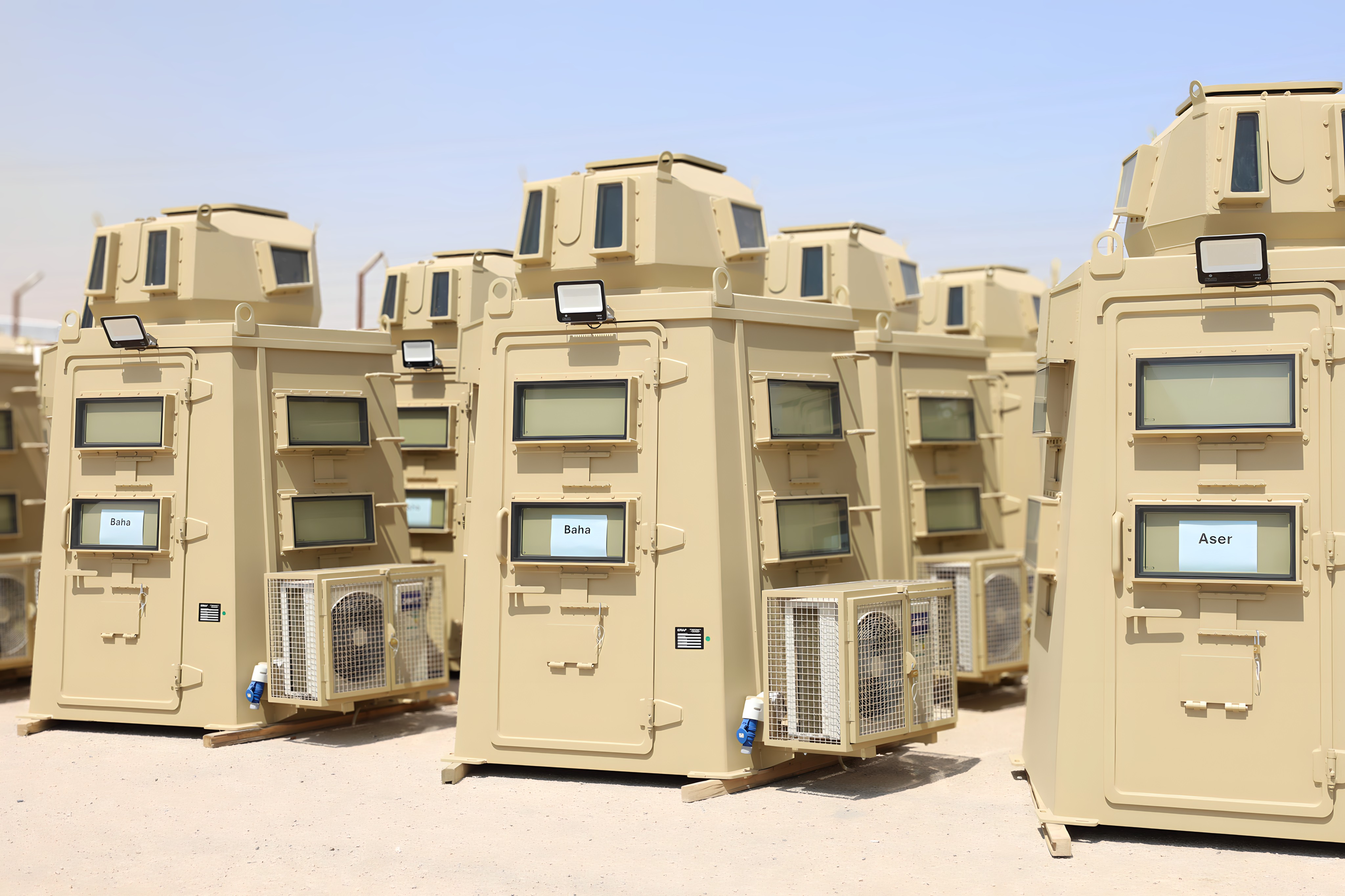

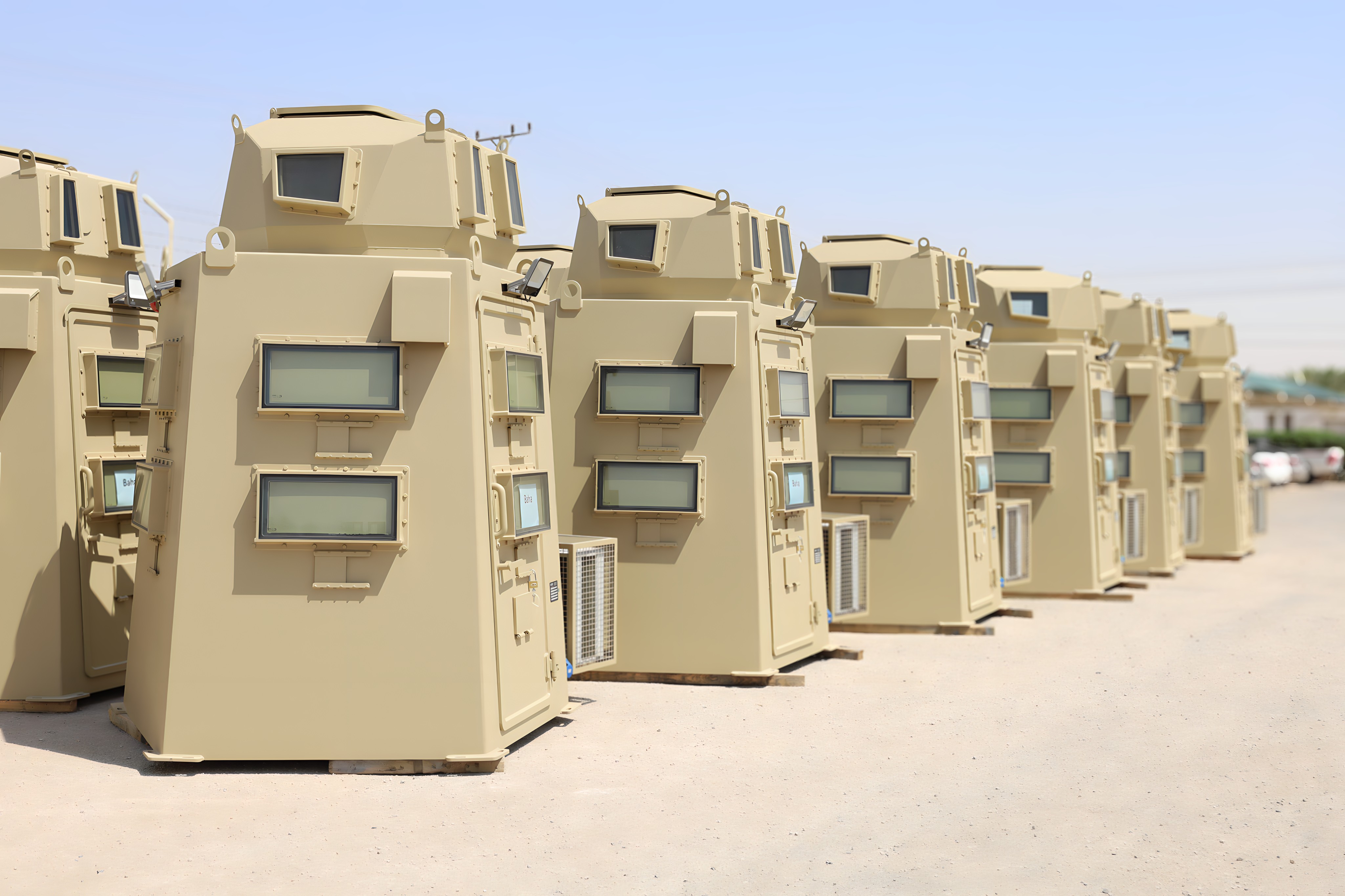

The ERAF Armored Guardroom is a pentagonal fortress designed for rapid deployment and 360-degree defense. Engineered for 2 personnel with optimized visibility and B7/VPAM PM9 ballistic-blast protection, this hardened outpost provides impenetrable security for checkpoints, perimeter defense, and tactical operations.
Dimensions & Design
• Minimum Size (L×W×H): 2325 × 2225 × 2950 mm
• Internal Area: 11 m² for 2 personnel
• Design Profile: Pentagonal Pyramid
• Design Purpose: Optimal Protection & 360° Visibility
• Exterior Finish: Epoxy Paint (Scratch/Water/Dust Resistant)
• Interior Finish: Polyethylene (Durable & Easy-Clean)
• Concrete Foundation: 3.30 × 2.80 × 0.30 m
Ballistic Protection
• Steel Protection: EN 1522 FB7 / VPAM PM 2021 Level 9
• Ballistic Glass: EN 1063 FB7 / VPAM PM 2021 Level 9
• Certification: ISO 17025 Certified
• Ballistic Resistance: 7.62×51 mm & 7.62×39 mm
• Blast Protection: VPAM ERV Standard
• Environmental: Fire-Resistant, Waterproof, Acoustic, Thermal Insulated
Openings & Turret
• View Openings: 11 × (2 heights/sides) – Min 545 × 230 mm
• View Glass: Steel Frame Mounted
• Firing Ports: 11 × (2 heights) – 11 × 11 cm with Kalashnikov / G3 Covers
• Door System: Lockable Key Outside, Manual Inside with Document Pass
• Door Handle: Stainless Steel with Emergency Lock
• Turret Capacity: 360° Rotating with Gear Lock
• Turret Mount Height: 1 m Internal
• Weapon Mounts: 12.7 & 7.62 mm MG with Foldable Platform
• Turret Features: 3 Viewing Ports, Operator Chair, Protective Cover
• Access Ladder: 4-Step with Gunner Platform, Raise / Lower Handle
Systems & Features
• Climate Control: AC Split 18,000 BTU, 220V/60Hz
• AC Installation: Copper Pipes with Turret Fan
• Ventilation: Exhaust Fan with Full Protection
• Electrical Power: 220V External, 50A Triple Breaker Socket
• Electrical Cable: 3×16 mm to Distribution Panel
• Communications: Radio Antenna & Concealed Ducts
• Alarm Systems: Visual & Audio with Emergency Activation
• Standard Equipment: Fire Extinguisher, First Aid Kit, Shelter
• Furnishings: 2 Chairs, Shelf Unit, Lockable Cage, Refrigerator
• Grounding: Copper Plate & Rod Earthing System
Deployment & Support
• Manufacturer: ERAF Industrial Company Ltd.
• Custom Configurations: Available at www.eraf.com
• Operational Status: Impenetrable Outpost, Immediate Deployment Ready
Dimensions & Design
• Minimum Size (L×W×H): 2325 × 2225 × 2950 mm
• Internal Area: 11 m² for 2 personnel
• Design Profile: Pentagonal Pyramid
• Design Purpose: Optimal Protection & 360° Visibility
• Exterior Finish: Epoxy Paint (Scratch/Water/Dust Resistant)
• Interior Finish: Polyethylene (Durable & Easy-Clean)
• Concrete Foundation: 3.30 × 2.80 × 0.30 m
Ballistic Protection
• Steel Protection: EN 1522 FB7 / VPAM PM 2021 Level 9
• Ballistic Glass: EN 1063 FB7 / VPAM PM 2021 Level 9
• Certification: ISO 17025 Certified
• Ballistic Resistance: 7.62×51 mm & 7.62×39 mm
• Blast Protection: VPAM ERV Standard
• Environmental: Fire-Resistant, Waterproof, Acoustic, Thermal Insulated
Openings & Turret
• View Openings: 11 × (2 heights/sides) – Min 545 × 230 mm
• View Glass: Steel Frame Mounted
• Firing Ports: 11 × (2 heights) – 11 × 11 cm with Kalashnikov / G3 Covers
• Door System: Lockable Key Outside, Manual Inside with Document Pass
• Door Handle: Stainless Steel with Emergency Lock
• Turret Capacity: 360° Rotating with Gear Lock
• Turret Mount Height: 1 m Internal
• Weapon Mounts: 12.7 & 7.62 mm MG with Foldable Platform
• Turret Features: 3 Viewing Ports, Operator Chair, Protective Cover
• Access Ladder: 4-Step with Gunner Platform, Raise / Lower Handle
Systems & Features
• Climate Control: AC Split 18,000 BTU, 220V/60Hz
• AC Installation: Copper Pipes with Turret Fan
• Ventilation: Exhaust Fan with Full Protection
• Electrical Power: 220V External, 50A Triple Breaker Socket
• Electrical Cable: 3×16 mm to Distribution Panel
• Communications: Radio Antenna & Concealed Ducts
• Alarm Systems: Visual & Audio with Emergency Activation
• Standard Equipment: Fire Extinguisher, First Aid Kit, Shelter
• Furnishings: 2 Chairs, Shelf Unit, Lockable Cage, Refrigerator
• Grounding: Copper Plate & Rod Earthing System
Deployment & Support
• Manufacturer: ERAF Industrial Company Ltd.
• Custom Configurations: Available at www.eraf.com
• Operational Status: Impenetrable Outpost, Immediate Deployment Ready
Core Features
Climate Control
18,000 BTU Split AC Unit (220V, 60Hz) with copper pipes and dedicated turret fan for optimal temperature regulation.
Thermal Isolation
Advanced thermal insulation protects occupants in extreme climates while reducing energy consumption.
Acoustic Isolation
Engineered sound dampening for stealth operations and reduced external noise transmission.
Water Resistant
Complete water leakage protection with sealed design and water-resistant polyethylene interior coating.
Firing Capability
11 firing ports at two heights equipped with internal covers for Kalashnikov and G3 rifles.

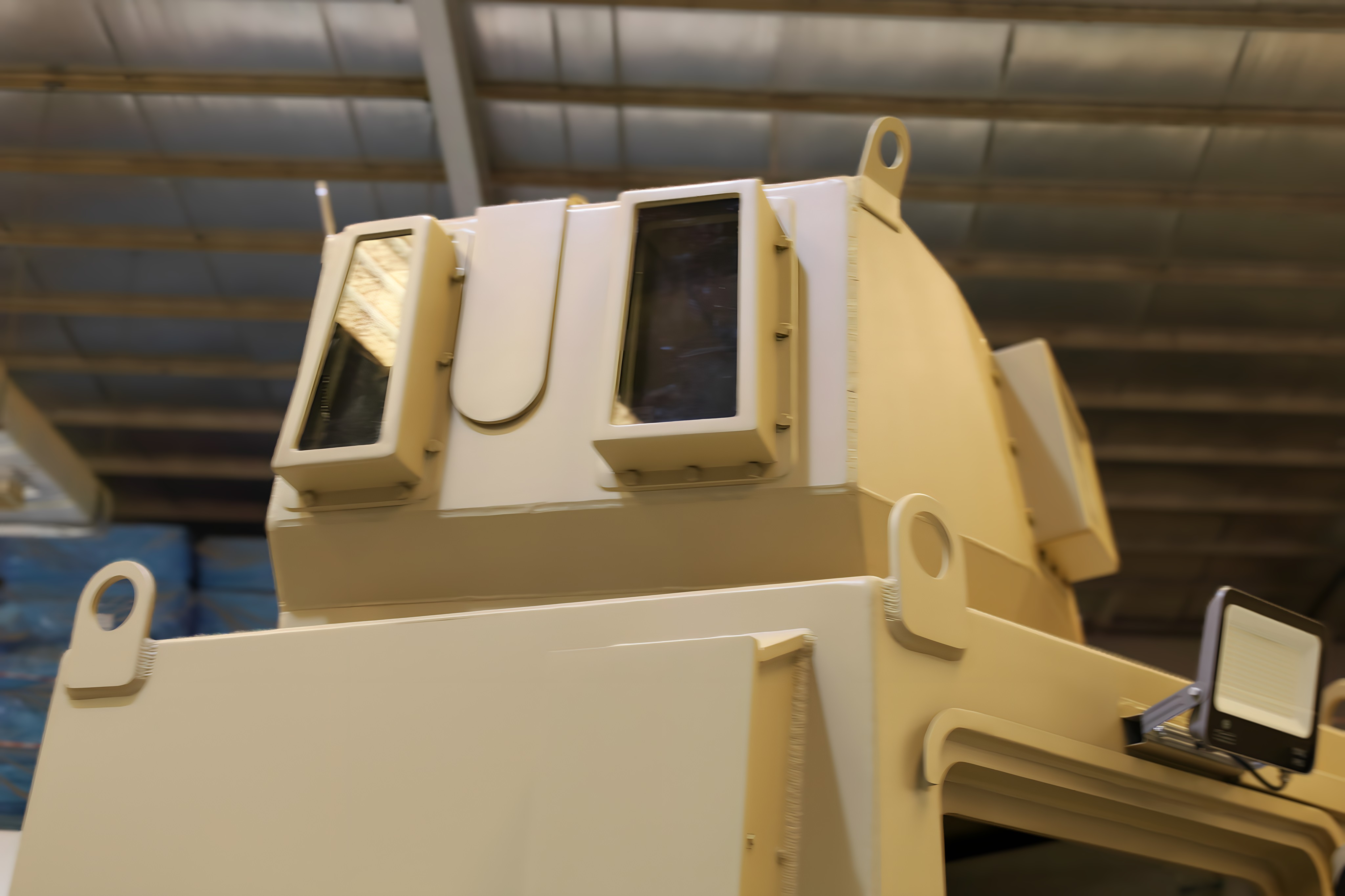

Rotating Turret
360° rotating turret with gear lock mounting 12.7 mm and 7.62 mm machine guns with foldable gunner platform.
