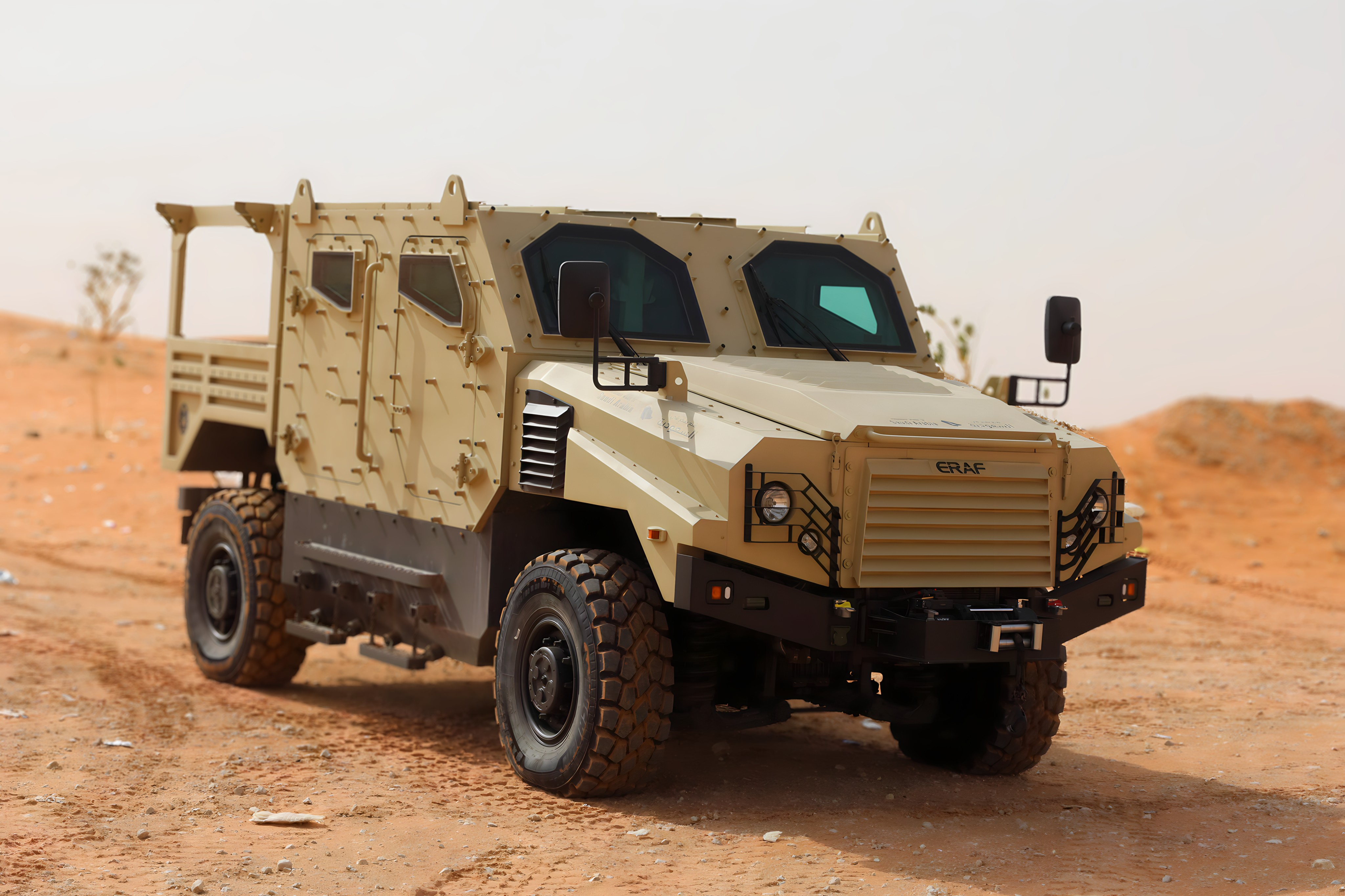

METRAS_14TC1
Saudi-engineered 4×4 Multi-Purpose Armored Vehicle combining exceptional versatility, STANAG Level III protection, and proven performance for diverse mission profiles.
METRAS_14TC1
Saudi-engineered 4×4 Multi-Purpose Armored Vehicle combining exceptional versatility, STANAG Level III protection, and proven performance for diverse mission profiles.
METRAS_14TC1
Overview
File Attachment
Specifications
Description
The METRAS 14TC1 is a multi-mission armored vehicle delivering STANAG Level III protection, double wishbone suspension for superior ride quality, and versatile 4×4 performance across extreme terrains.
Dimensions & Weight
• Overall length: 6050 mm
• Overall width: 2600 mm
• Overall height: 2700 mm
• Front axle kerb weight: 4850 kg
• Rear axle kerb weight: 6500 kg
• Payload capacity: 2000 kg
• GVM (Gross Vehicle Mass): 14,000 kg
Performance & Mobility
• Max speed (on road): 110 km/h
• Range (on road): 600 km
• Gradeability: 60%
• Side slope: 30%
Engine & Powertrain
• Engine model: Cummins ISB 285 Hp E3, 6.7 L, 6 cyl in-line
• Max power: 285 hp @ 2500 rpm
• Max torque: 970 Nm @ 1200 rpm
• Transmission: Allison fully automatic SP series, 6F / 1R
• Transfer case: AxleTech 4×2 / 4×4, Low–High
Chassis, Axles & Suspension
• Front axle: AWR, 7000 kg capacity
• Rear axle: AWR, 7000 kg capacity
• Front suspension: Double wishbone
• Rear suspension: Double wishbone
• Wheels & tyres: 365/80 R20 tyres, 20-11 SDC rims
• Brakes: Full air brake system, disc front & rear, ABS/EBS
• Steering: Powered integral hydraulic servo
Protection & Features
• Protection level: STANAG Level III
• Max permissible front: 6900 kg
• Max permissible rear: 7100 kg
Dimensions & Weight
• Overall length: 6050 mm
• Overall width: 2600 mm
• Overall height: 2700 mm
• Front axle kerb weight: 4850 kg
• Rear axle kerb weight: 6500 kg
• Payload capacity: 2000 kg
• GVM (Gross Vehicle Mass): 14,000 kg
Performance & Mobility
• Max speed (on road): 110 km/h
• Range (on road): 600 km
• Gradeability: 60%
• Side slope: 30%
Engine & Powertrain
• Engine model: Cummins ISB 285 Hp E3, 6.7 L, 6 cyl in-line
• Max power: 285 hp @ 2500 rpm
• Max torque: 970 Nm @ 1200 rpm
• Transmission: Allison fully automatic SP series, 6F / 1R
• Transfer case: AxleTech 4×2 / 4×4, Low–High
Chassis, Axles & Suspension
• Front axle: AWR, 7000 kg capacity
• Rear axle: AWR, 7000 kg capacity
• Front suspension: Double wishbone
• Rear suspension: Double wishbone
• Wheels & tyres: 365/80 R20 tyres, 20-11 SDC rims
• Brakes: Full air brake system, disc front & rear, ABS/EBS
• Steering: Powered integral hydraulic servo
Protection & Features
• Protection level: STANAG Level III
• Max permissible front: 6900 kg
• Max permissible rear: 7100 kg
Core Features
Proven Protection
STANAG Level III ballistic protection provides reliable crew safety against threats while maintaining exceptional agility and deployment speed.
Efficient Powertrain
Cummins ISB 6.7L engine with 285 Hp delivers strong 970 Nm torque. Allison fully automatic transmission (6F/1R) ensures smooth, responsive performance.
Enhanced Mobility
4x4 capability with dual-range transfer case. Double wishbone suspension front and rear conquers 60° slopes and 30% side slopes with precision control.
Smart Payload Design
2000 kg payload capacity with 14,000 kg GVM. Flexible configuration supports personnel transport, equipment mounting, and diverse tactical missions.
Versatile Platform
Multi-purpose armored vehicle design enables rapid role conversion for ISR, transport, fire support, and specialized operations.
Saudi-Engineered Excellence
100% proudly made in Saudi Arabia. Built to withstand regional operational demands and climate extremes with proven subsystem reliability.
