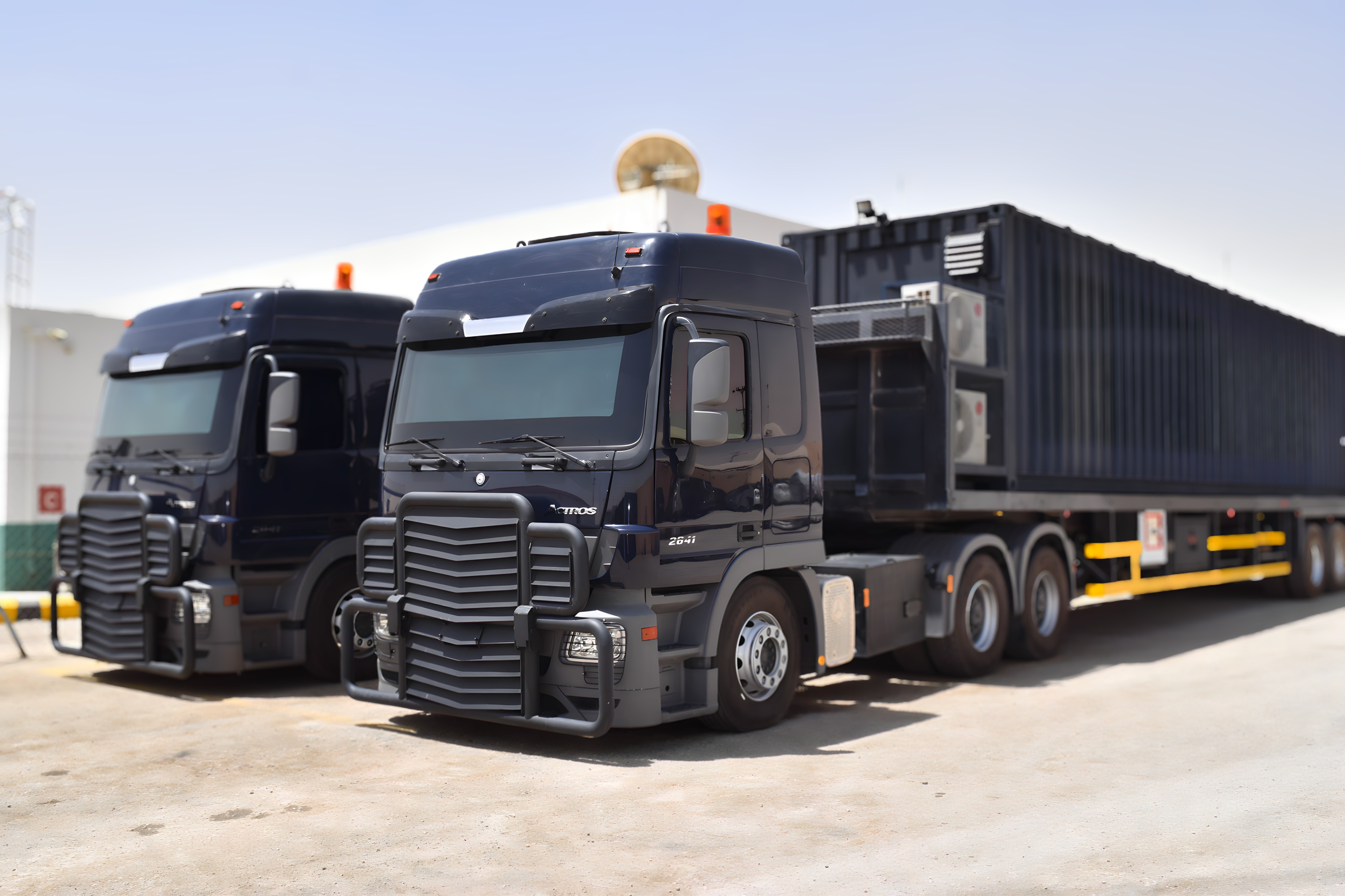

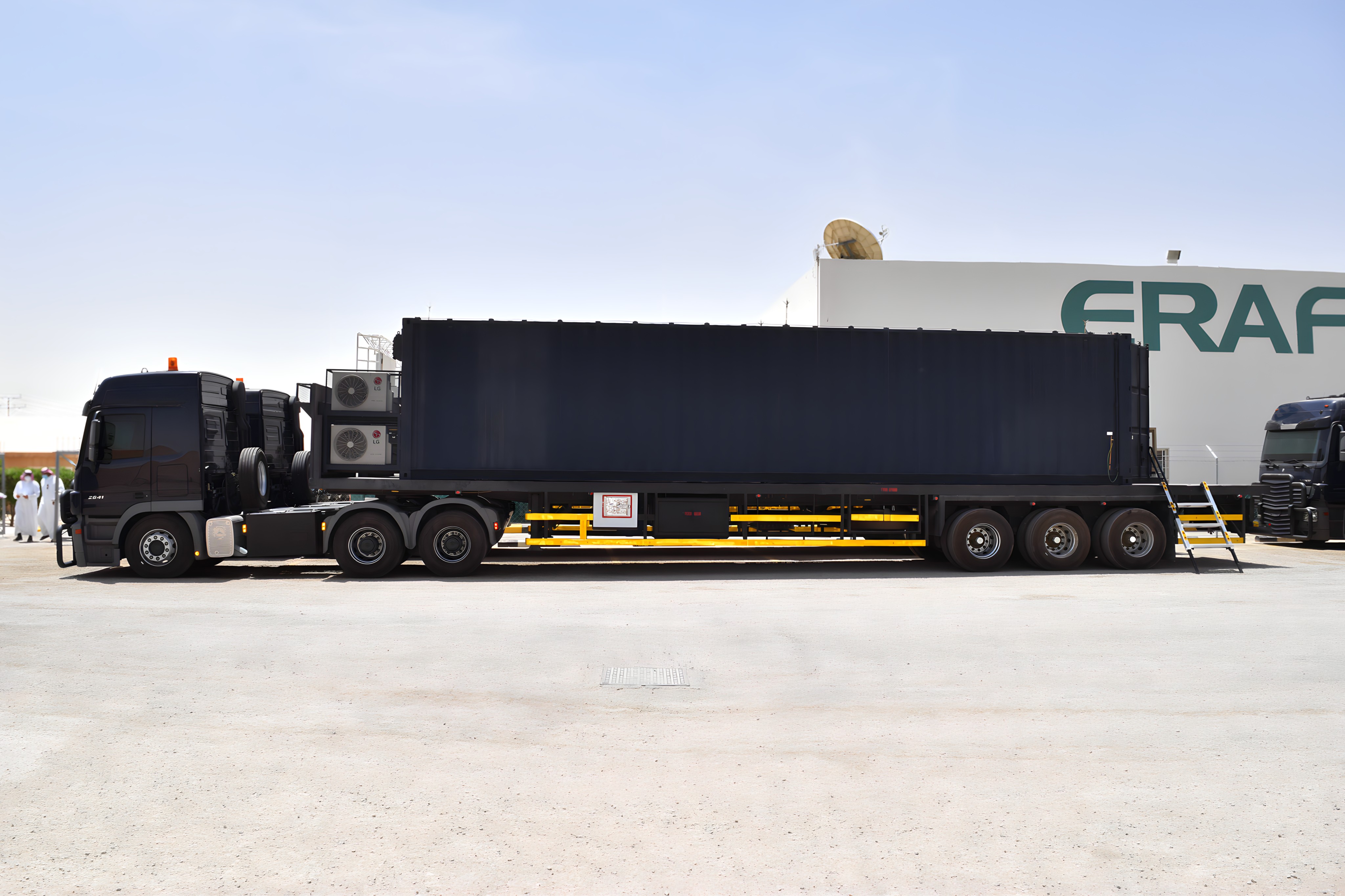

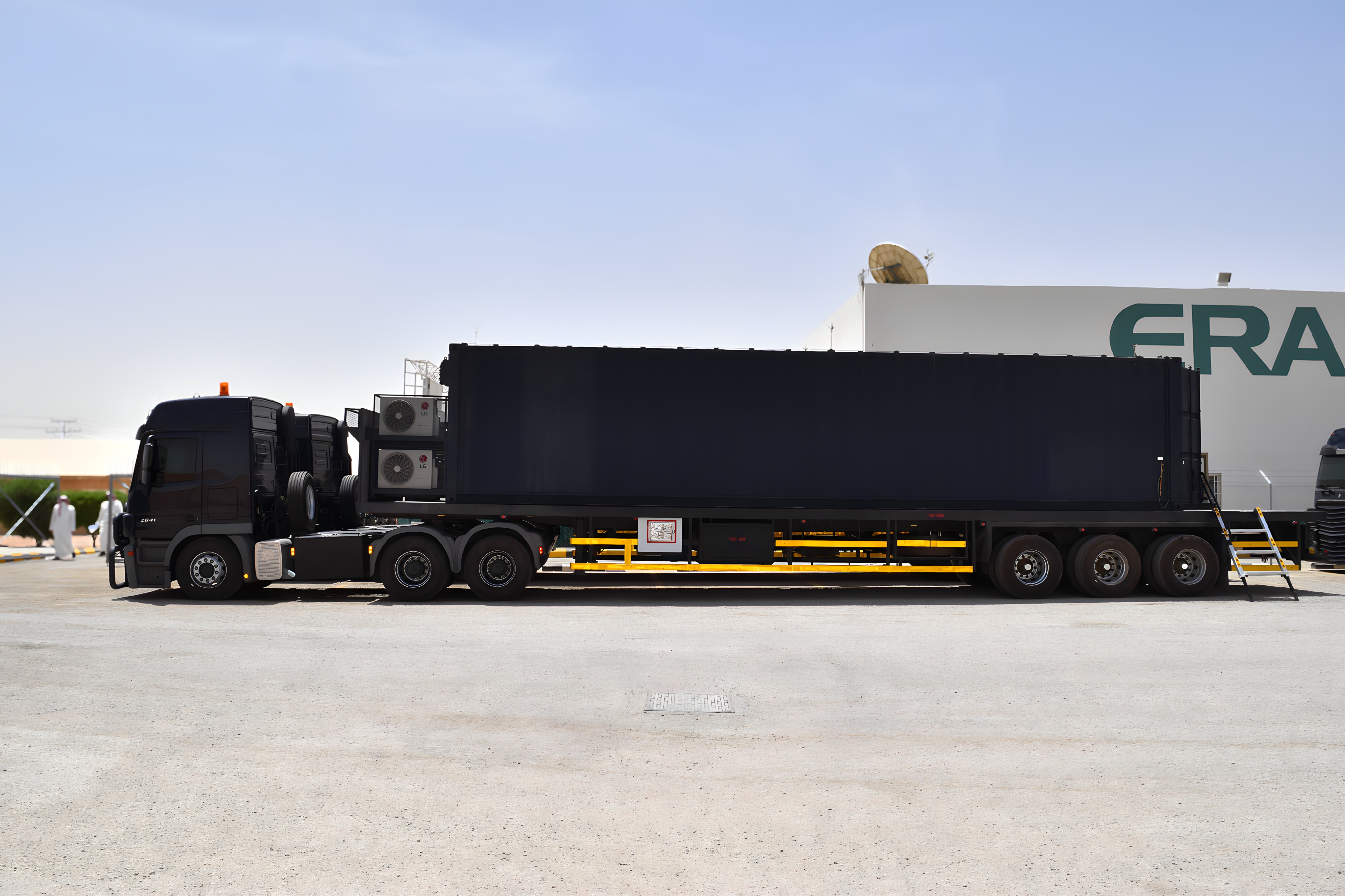

Armored Container Truck
Mobile B7/FBV ballistic-protected arsenal on 4×4 chassis. Secure weapons and ammunition transport with 3.5-tonne payload capacity, 15.1-tonne GVW, and integrated protection systems for field operations and rapid deployment.
Armored Container Truck
Mobile B7/FBV ballistic-protected arsenal on 4×4 chassis. Secure weapons and ammunition transport with 3.5-tonne payload capacity, 15.1-tonne GVW, and integrated protection systems for field operations and rapid deployment.
Armored Container Truck
Overview
File Attachment.jpg)
.jpg)
.jpg)
.jpg)
Specifications
Description
The ERAF Armored Guardroom is a pentagonal fortress designed for rapid deployment and 360-degree defense. Engineered for 2 personnel with optimized visibility and B7/VPAM PM9 ballistic-blast protection, this hardened outpost provides impenetrable security for checkpoints, perimeter defense, and tactical operations.
Vehicle Overview
• Configuration: 4×4 Boxed Construction Troop Carrier
• Gross Vehicle Weight: 15.1 tonnes
• Curb Weight: 11.6 tonnes
• Payload Capacity: 3.5 tonnes
• Crew & Passengers: 2 + 10 Personnel
• Wheelbase: 2.78 m
Dimensions & Geometry
• Overall Length: 5.8 m
• Overall Width: 2.58 m
• Overall Height: 2.58 m
• Ground Clearance: 340 mm
• Approach Angle: 30°
• Departure Angle: 45°
• Max Road Speed: 100 km/h
• Max Grade Capability: 60%
Engine & Powertrain
• Engine Model: Mercedes OM 926 LA Euro III
• Fuel System: Common Rail Diesel Injection
• Max Power: 205 kW (275 HP)
• Max Torque: 1200 Nm @ 1200–1600 rpm
• Fuel Tank Capacity: 200 L
• Power-to-Weight Ratio: 23 HP/tonne
• Transmission: Allison 2500 SP Automatic 6-Speed
• Transfer Case: DGS TCA850 Two-Shaft, Pneumatic with Diff Lock
Chassis & Suspension
• Front Suspension: Twin Parabolic Leaf Spring w/ Telescopic Dampers
• Rear Suspension: Multi Parabolic Leaf Spring w/ Dampers
• Driven Wheels: 4 (All Wheels Driven)
• Front Axle: Mercedes AL5 ALo
• Rear Axle: Steered Rigid Hypoid with Diff Lock, Mercedes AM4
• Braking System: Air Actuated with ABS, Spring Park / Emergency, Cam Drum
Protection & Systems
• Ballistic Protection: FBV Level B7 Certified
• Blast Mitigation: 20 Air Changes/Hour with 2 Extractor Fans
• Fire Suppression: Crew & Passenger Compartment, Manual Dashboard Activation
• Smoke Discharger: Integrated & Operational
• Optional Accessories: GPS, Auxiliary Alternator, First Aid Kit, Hydraulic Jack, Tools, PA System
• Manufacturer: ERAF Industrial Company Ltd. – www.eraf.com
Vehicle Overview
• Configuration: 4×4 Boxed Construction Troop Carrier
• Gross Vehicle Weight: 15.1 tonnes
• Curb Weight: 11.6 tonnes
• Payload Capacity: 3.5 tonnes
• Crew & Passengers: 2 + 10 Personnel
• Wheelbase: 2.78 m
Dimensions & Geometry
• Overall Length: 5.8 m
• Overall Width: 2.58 m
• Overall Height: 2.58 m
• Ground Clearance: 340 mm
• Approach Angle: 30°
• Departure Angle: 45°
• Max Road Speed: 100 km/h
• Max Grade Capability: 60%
Engine & Powertrain
• Engine Model: Mercedes OM 926 LA Euro III
• Fuel System: Common Rail Diesel Injection
• Max Power: 205 kW (275 HP)
• Max Torque: 1200 Nm @ 1200–1600 rpm
• Fuel Tank Capacity: 200 L
• Power-to-Weight Ratio: 23 HP/tonne
• Transmission: Allison 2500 SP Automatic 6-Speed
• Transfer Case: DGS TCA850 Two-Shaft, Pneumatic with Diff Lock
Chassis & Suspension
• Front Suspension: Twin Parabolic Leaf Spring w/ Telescopic Dampers
• Rear Suspension: Multi Parabolic Leaf Spring w/ Dampers
• Driven Wheels: 4 (All Wheels Driven)
• Front Axle: Mercedes AL5 ALo
• Rear Axle: Steered Rigid Hypoid with Diff Lock, Mercedes AM4
• Braking System: Air Actuated with ABS, Spring Park / Emergency, Cam Drum
Protection & Systems
• Ballistic Protection: FBV Level B7 Certified
• Blast Mitigation: 20 Air Changes/Hour with 2 Extractor Fans
• Fire Suppression: Crew & Passenger Compartment, Manual Dashboard Activation
• Smoke Discharger: Integrated & Operational
• Optional Accessories: GPS, Auxiliary Alternator, First Aid Kit, Hydraulic Jack, Tools, PA System
• Manufacturer: ERAF Industrial Company Ltd. – www.eraf.com
Core Features
Ballistic Protection
STANAG Level 1 FB7 armored body for secure weapon and ammunition storage during transport and field operations.
4x4 Rugged Mobility
Constant 4x4 all-terrain configuration with 340 mm ground clearance and 60° gradient capability for challenging environments.
Mercedes Powerhouse
205 kW (275 HP) OM 926 LA Euro III diesel engine with 1200 Nm torque and automatic 6-speed transmission.
Fire Suppression
Integrated fire suppression system in crew and passenger compartment with manual dashboard activation.
Advanced Suspension
Front: Twin Parabolic Leaf Spring with Telescopic Dampers |
Rear: Multi Parabolic Leaf Spring with Telescopic Dampers for superior stability.
Brake System
Air-Actuated Brakes with ABS anti-lock system and Spring-Actuate Cam Type Drum Brakes for park/emergency operation.
